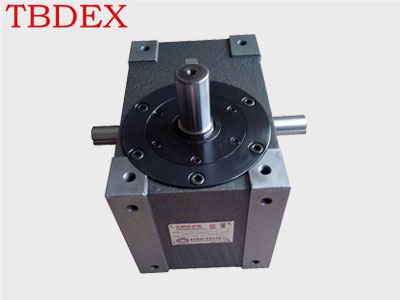

Shaft Model

• PDF DOWNLOAD32DS

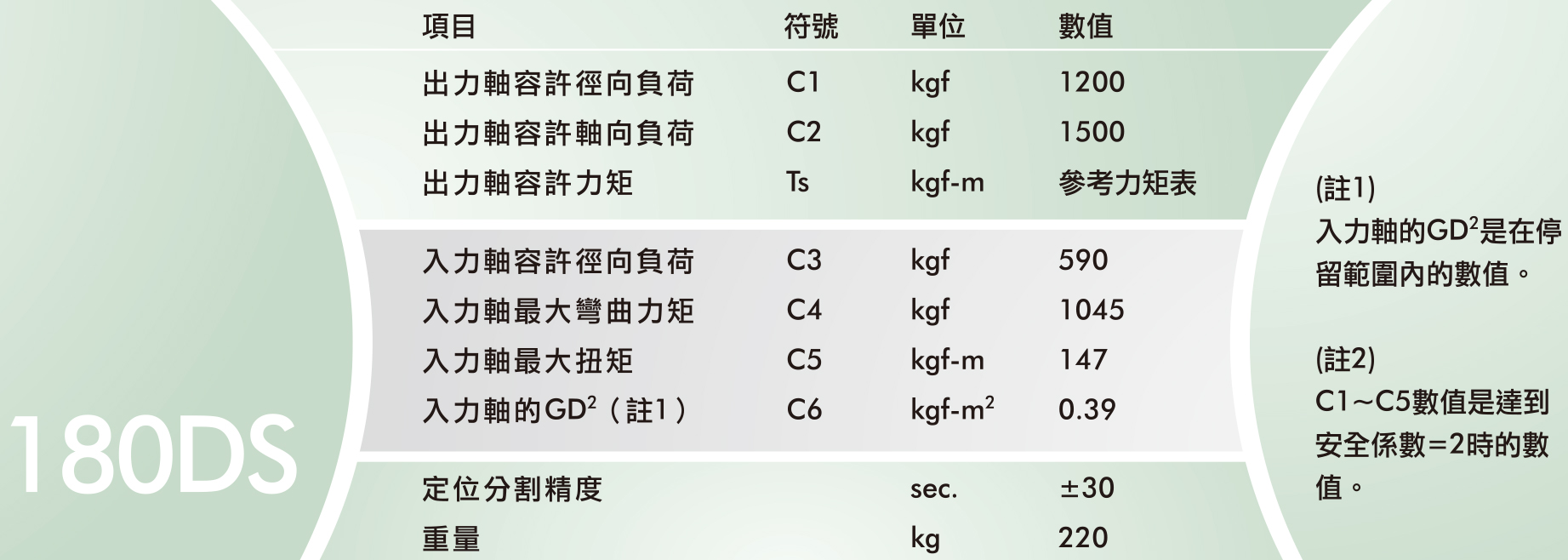

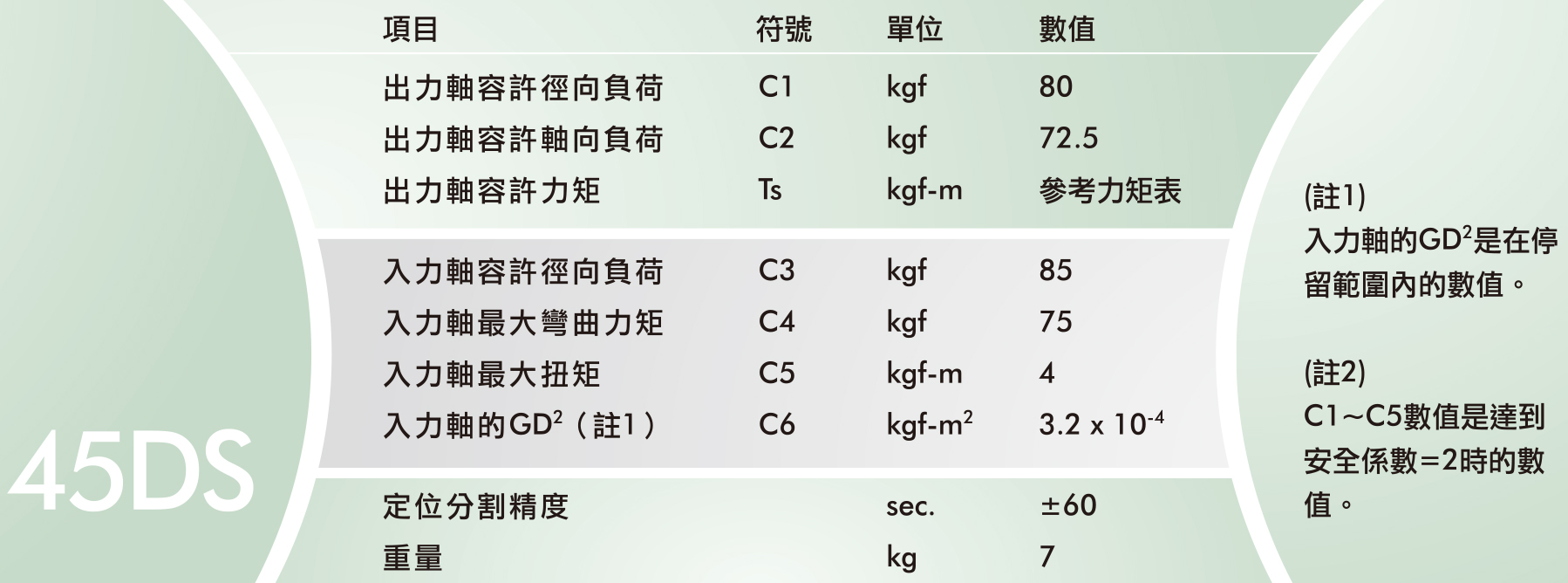

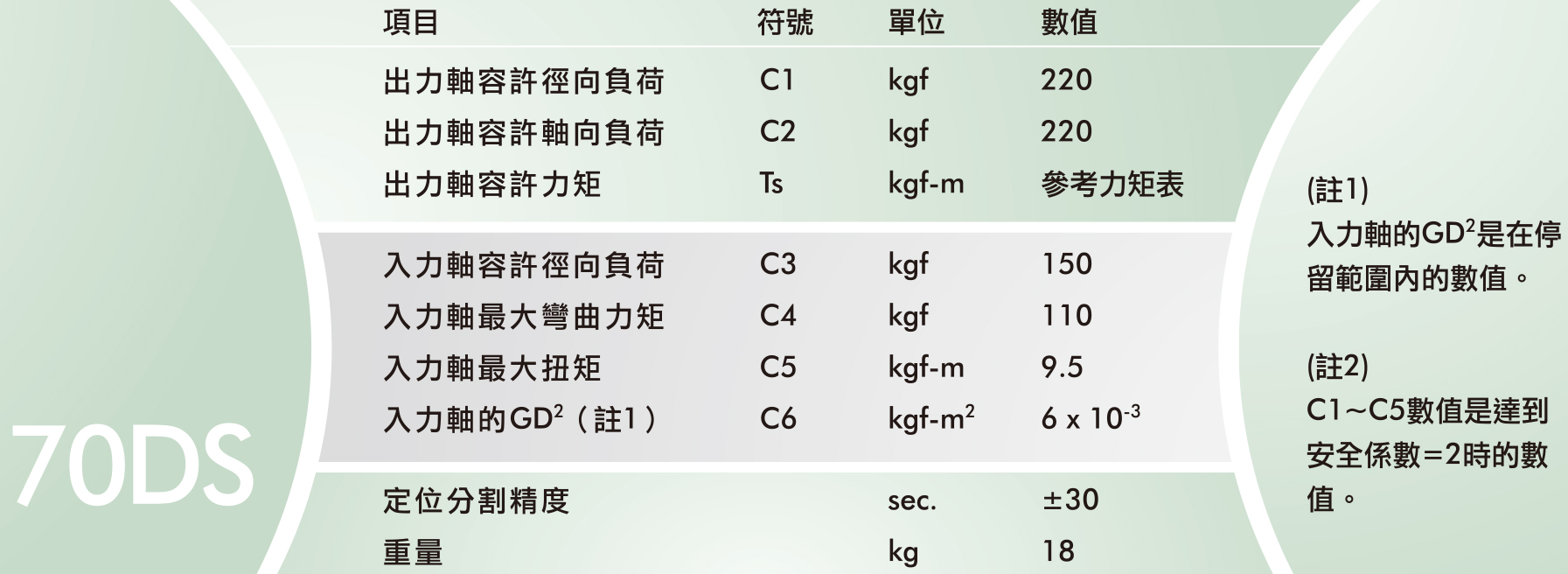

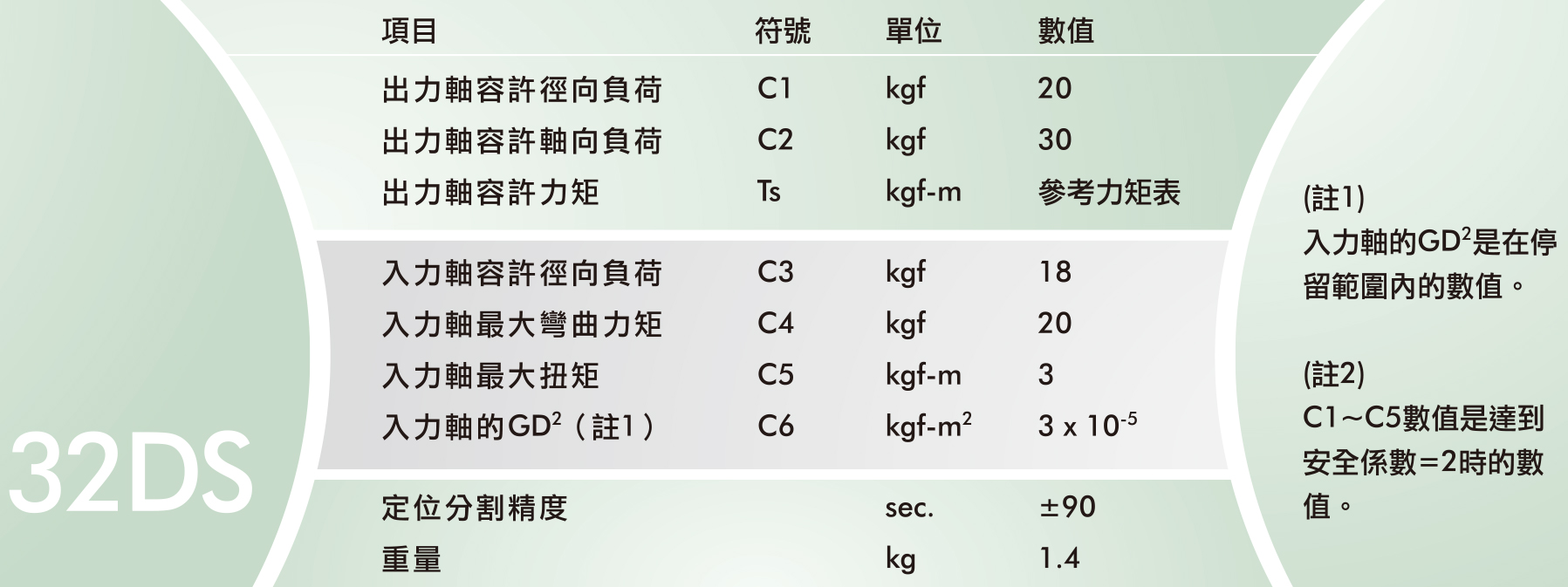

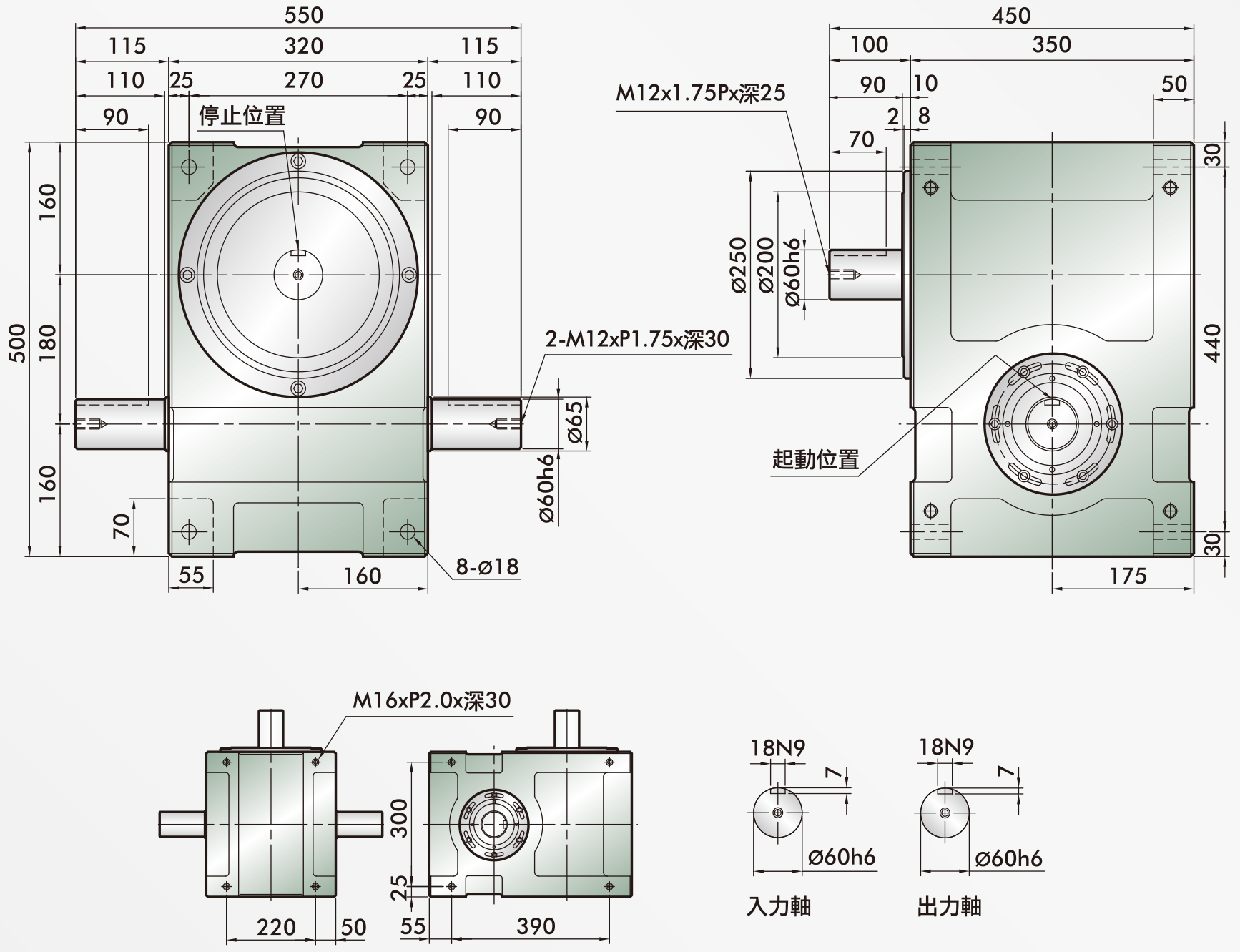

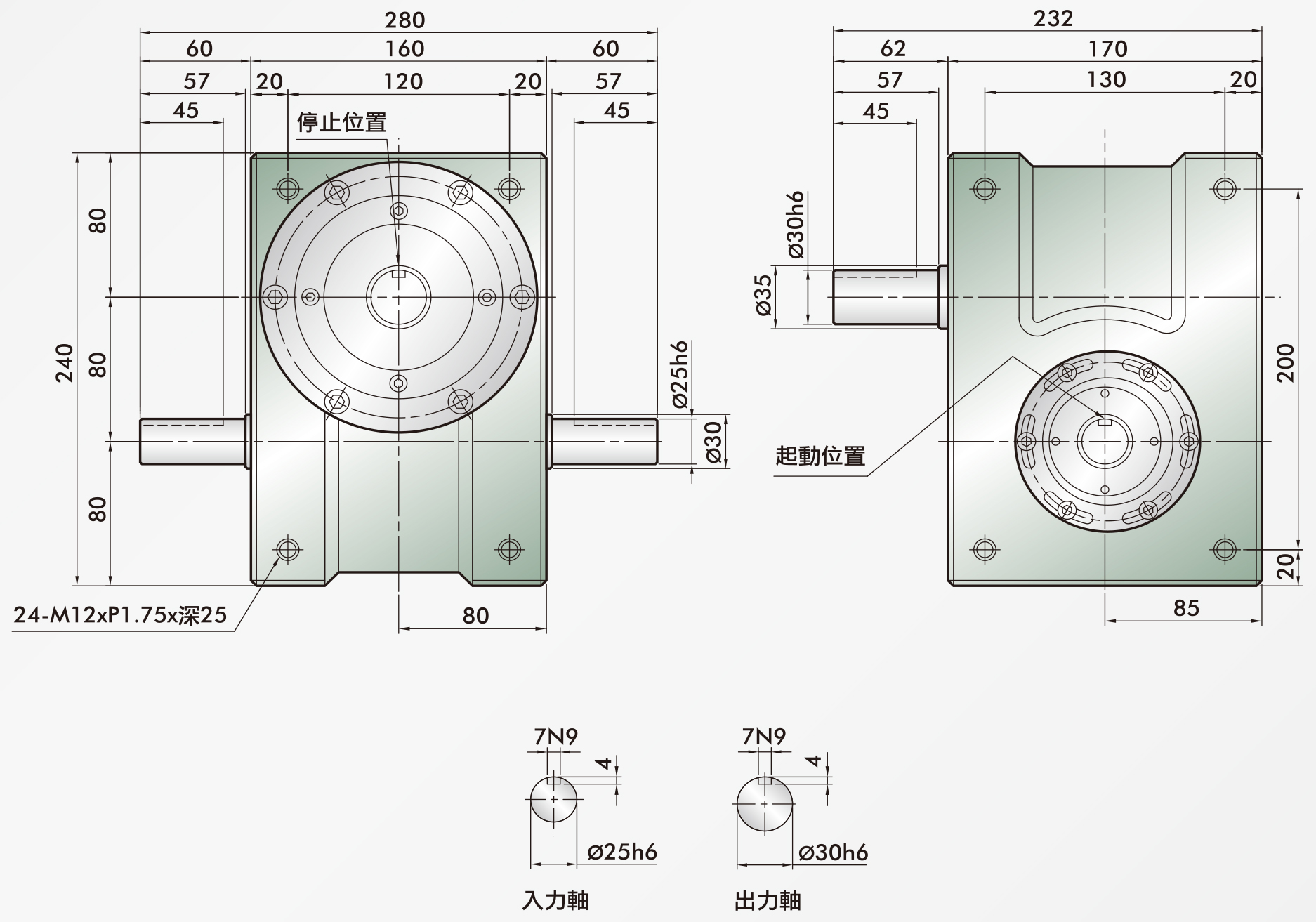

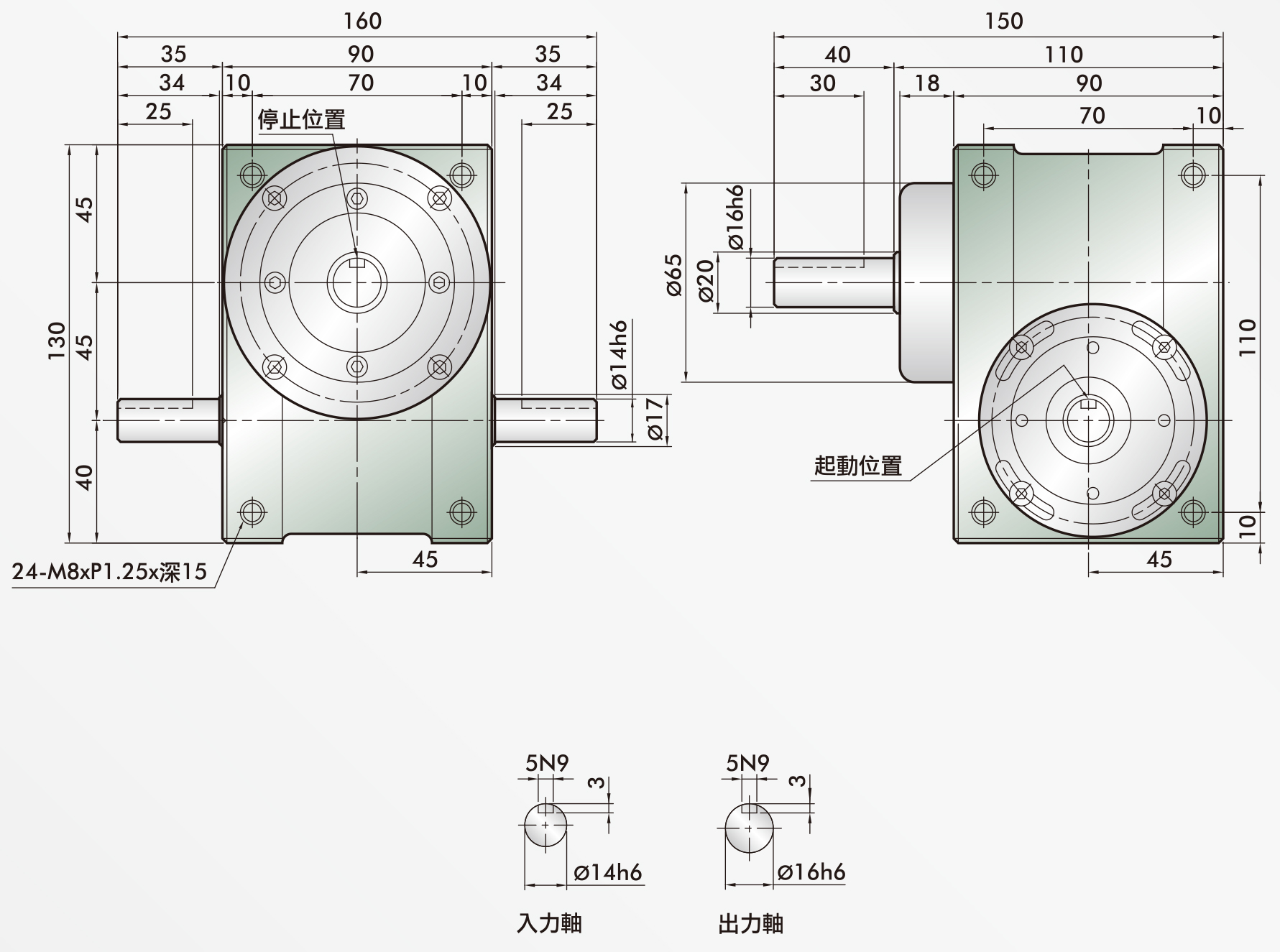

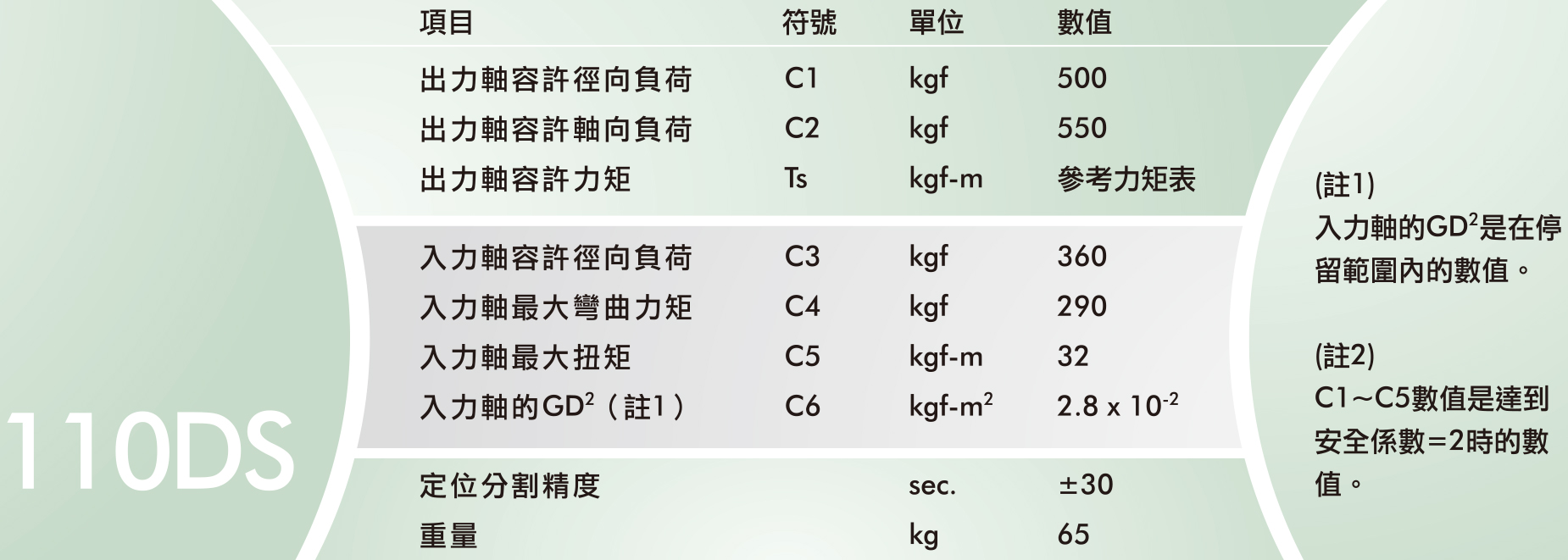

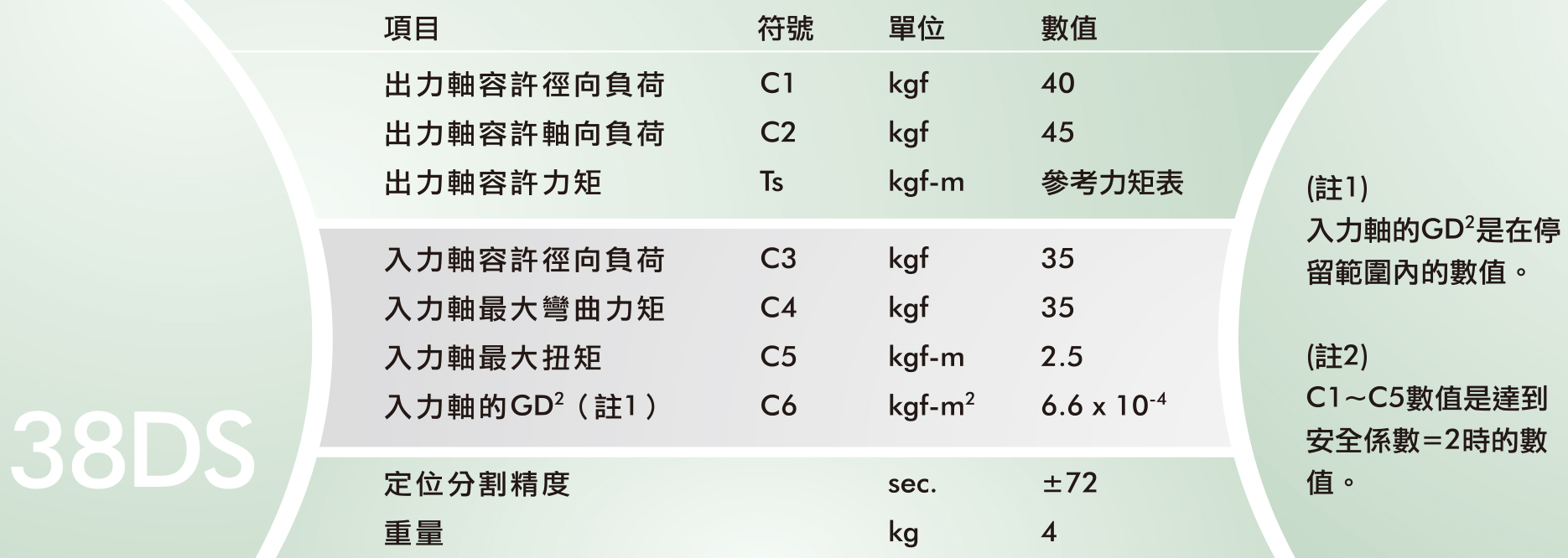

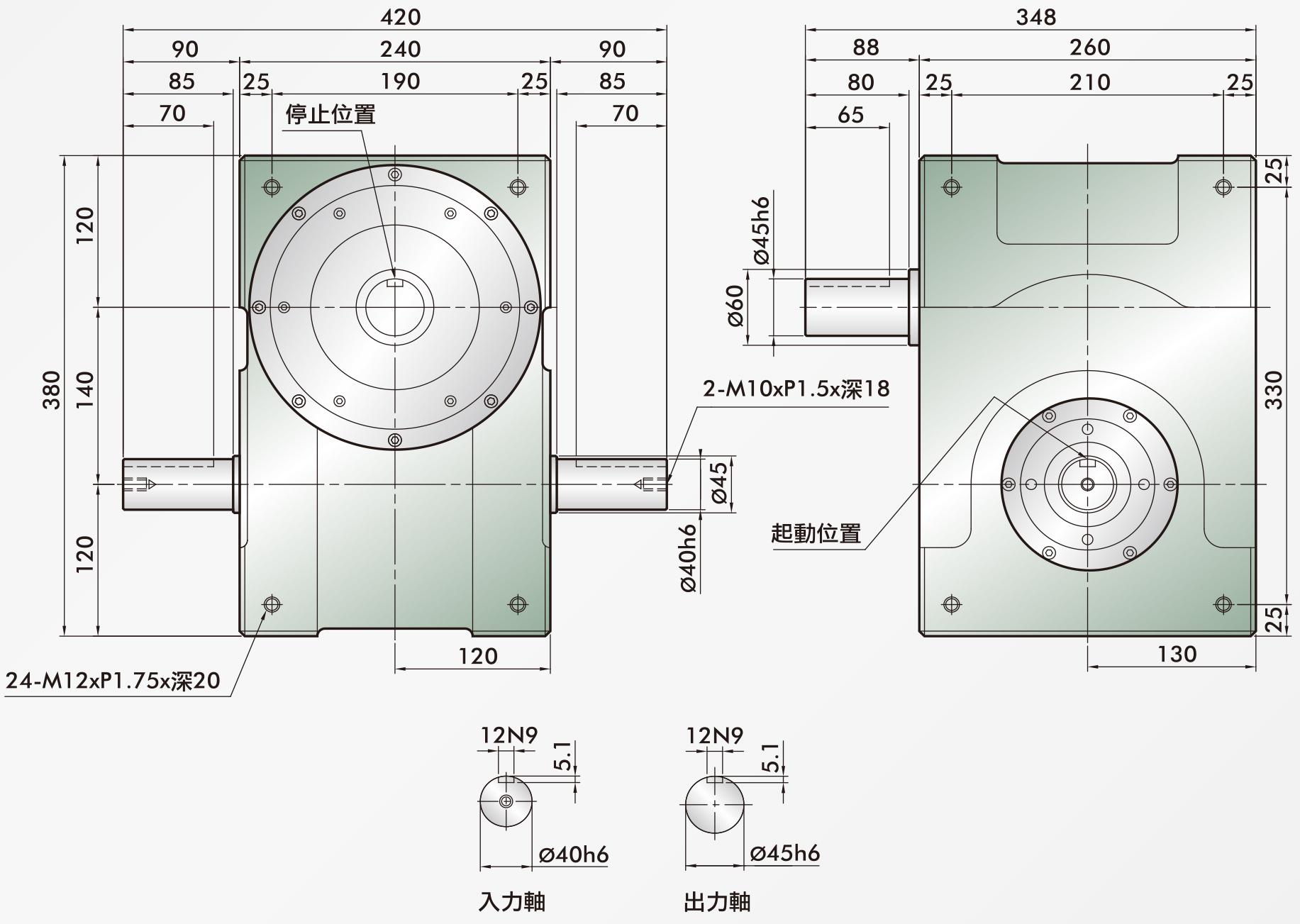

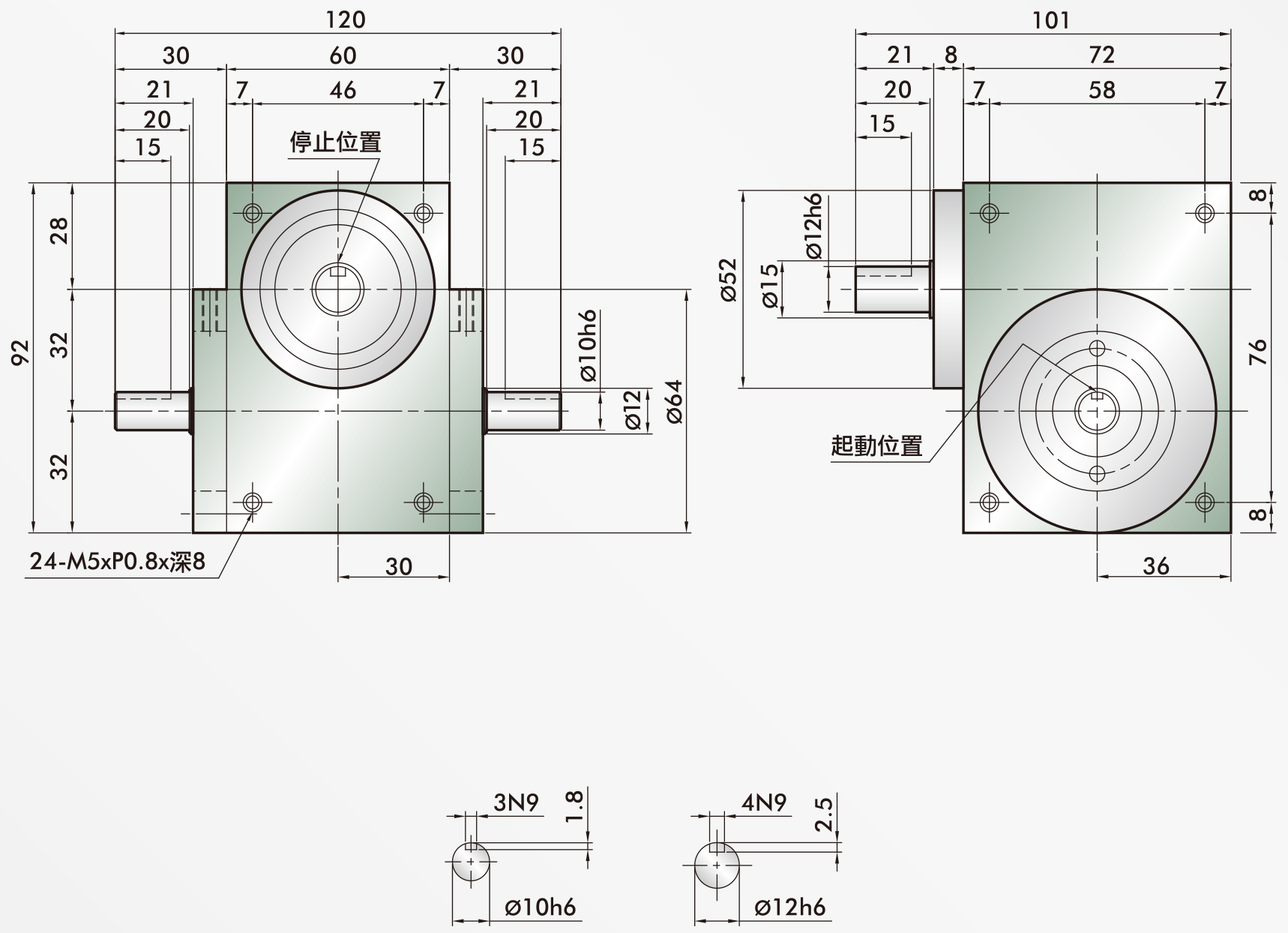

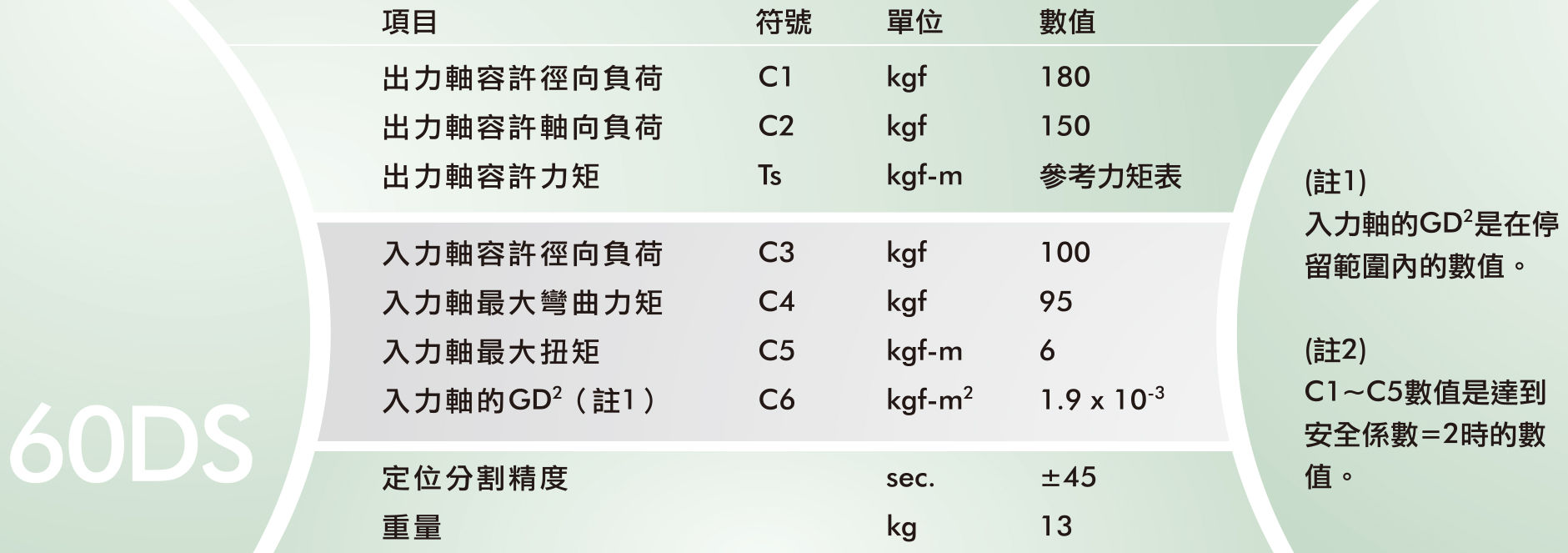

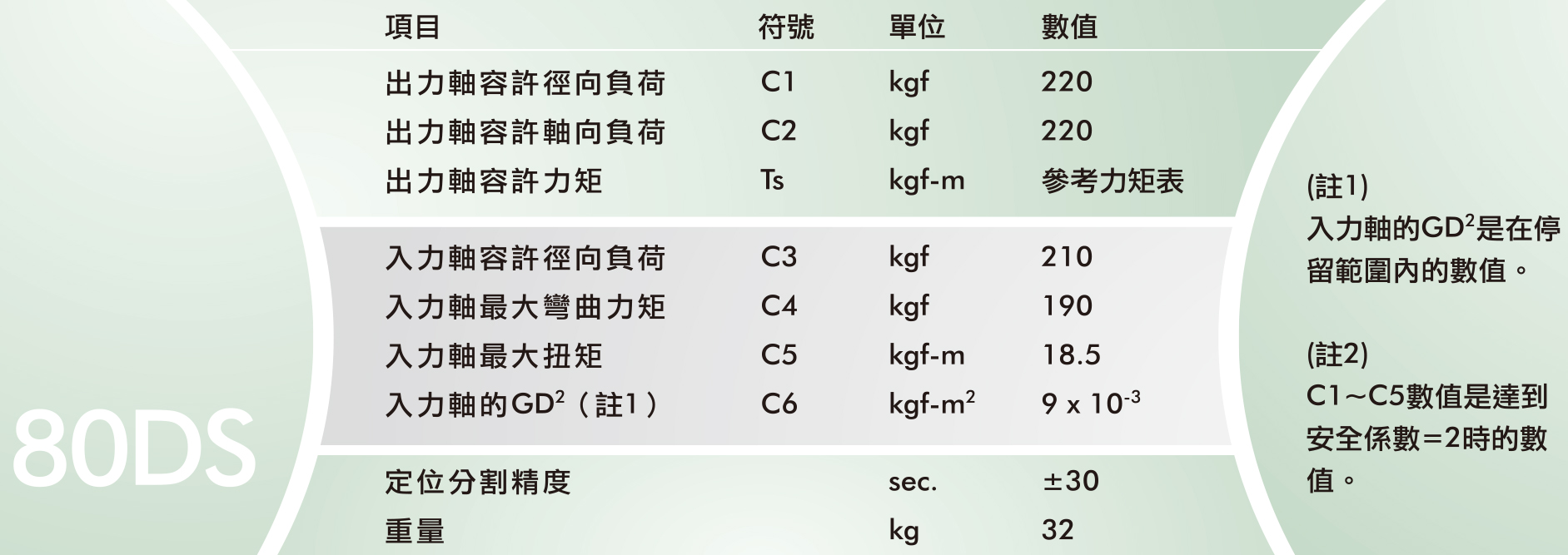

• NUMBER32DS，38DS，45DS，60DS，70DS，80DS，83DS，100DS，110DS，140DS，180DS

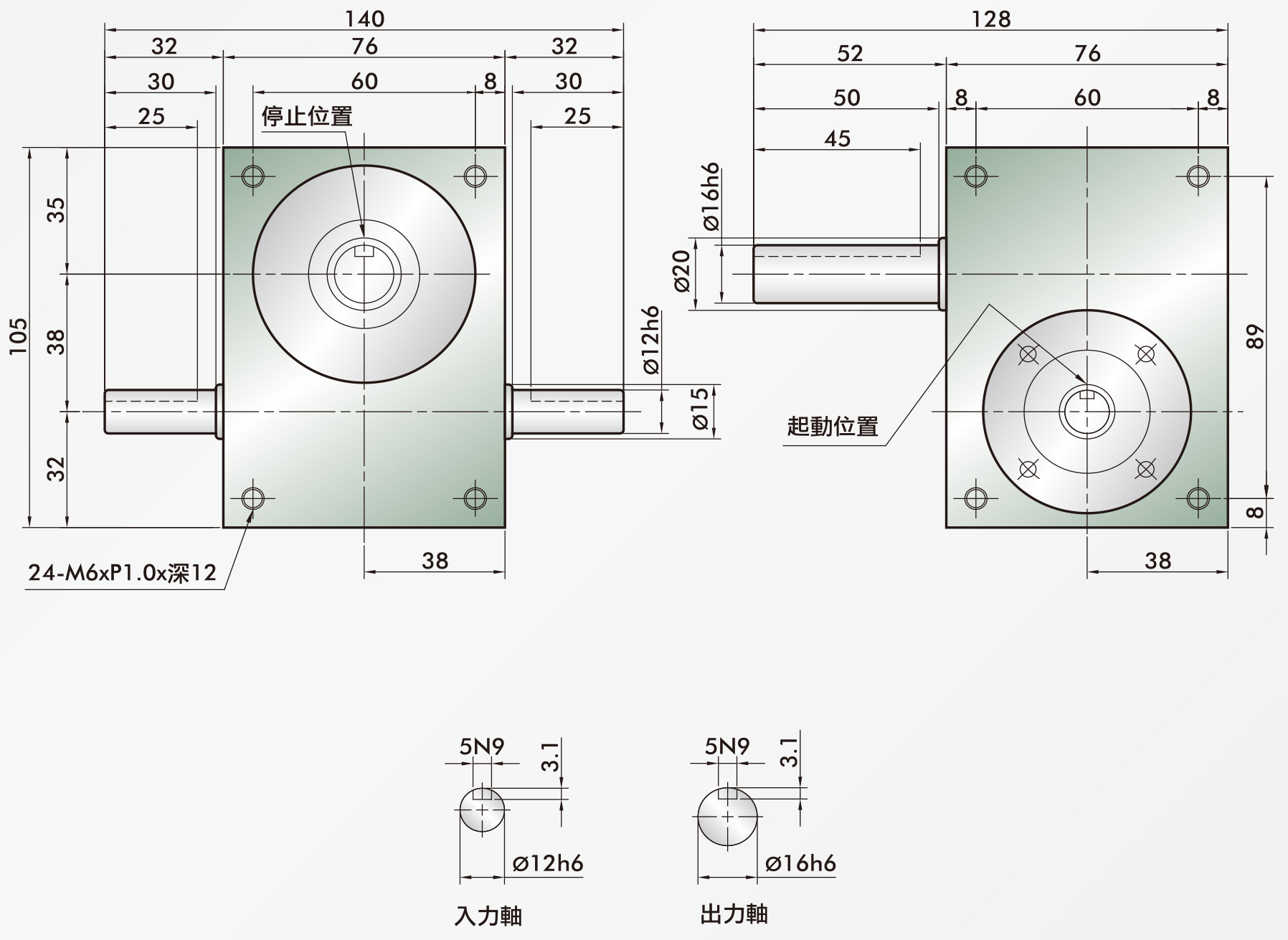

• DESCRIPTIONThis series of models is a typical traditional mandrel shape. The mounting and fittings of the mounting parts are matched with gears, couplings or coupling plates. Special attention should be paid to the aperture tolerance (+0.015/-0) and the chain slot tolerance (+0.015/- 0), the use of conveyor belt drive, gear drive, gapless coupling combined drive.
