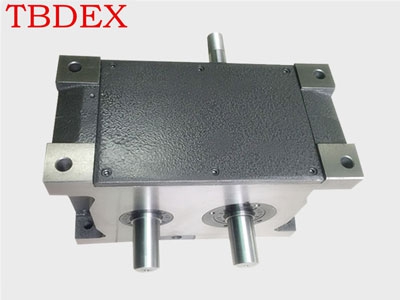

Paradex Model

• PDF DOWNLOADPU50DS

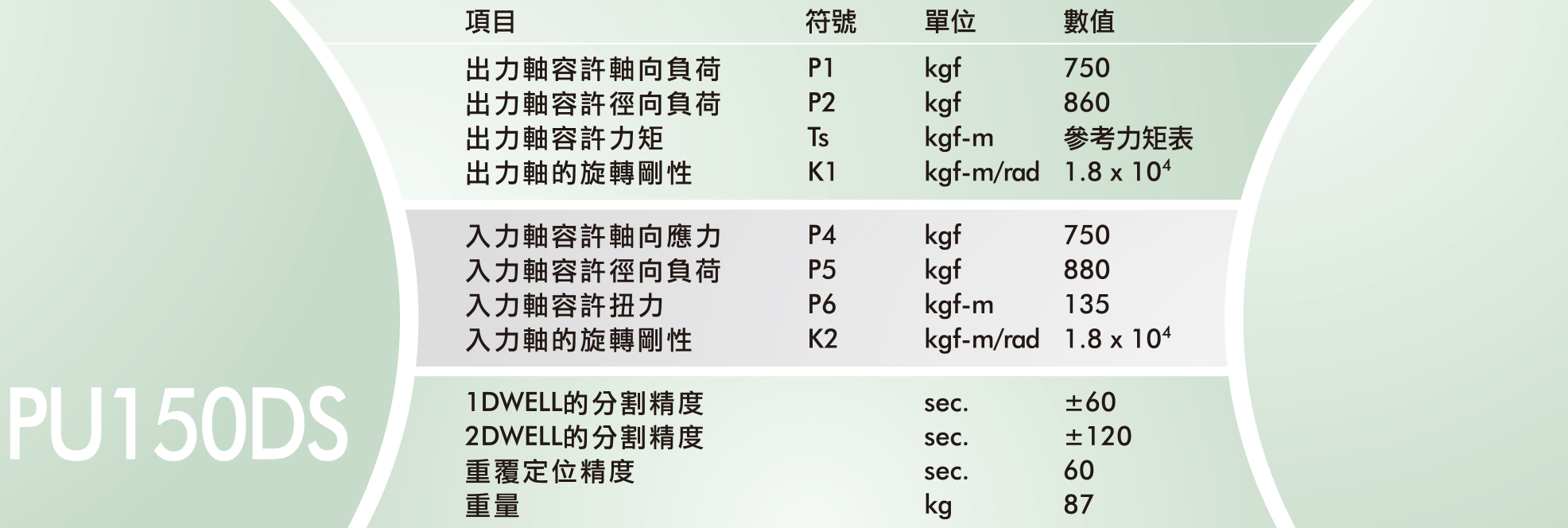

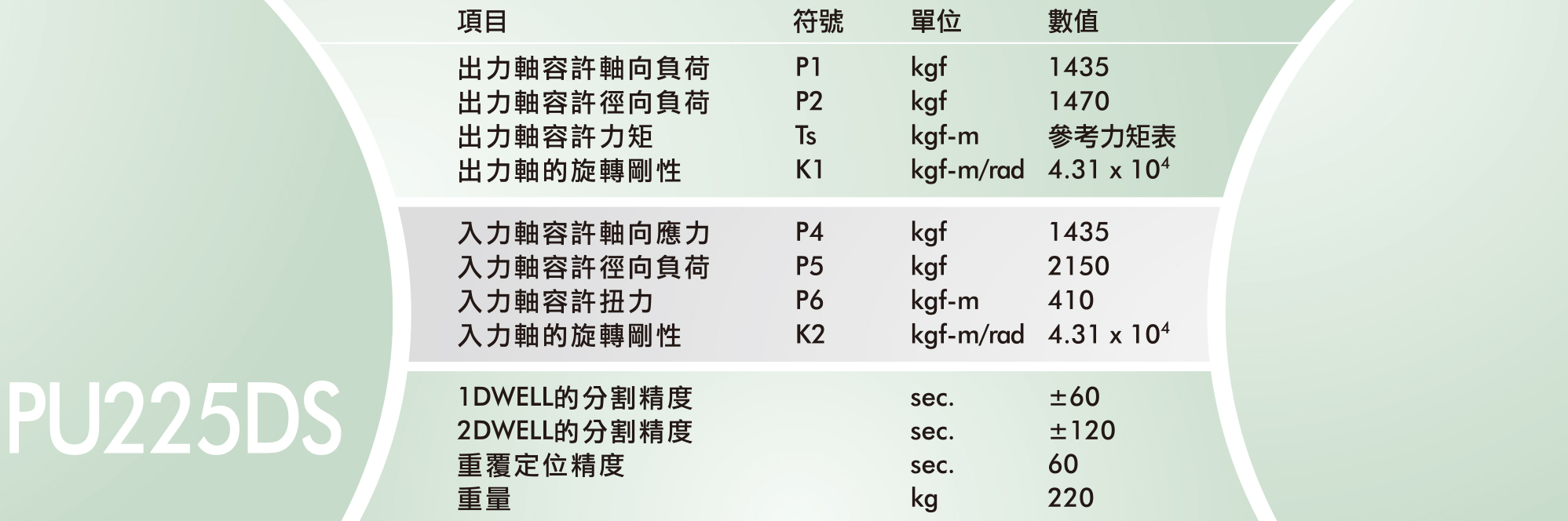

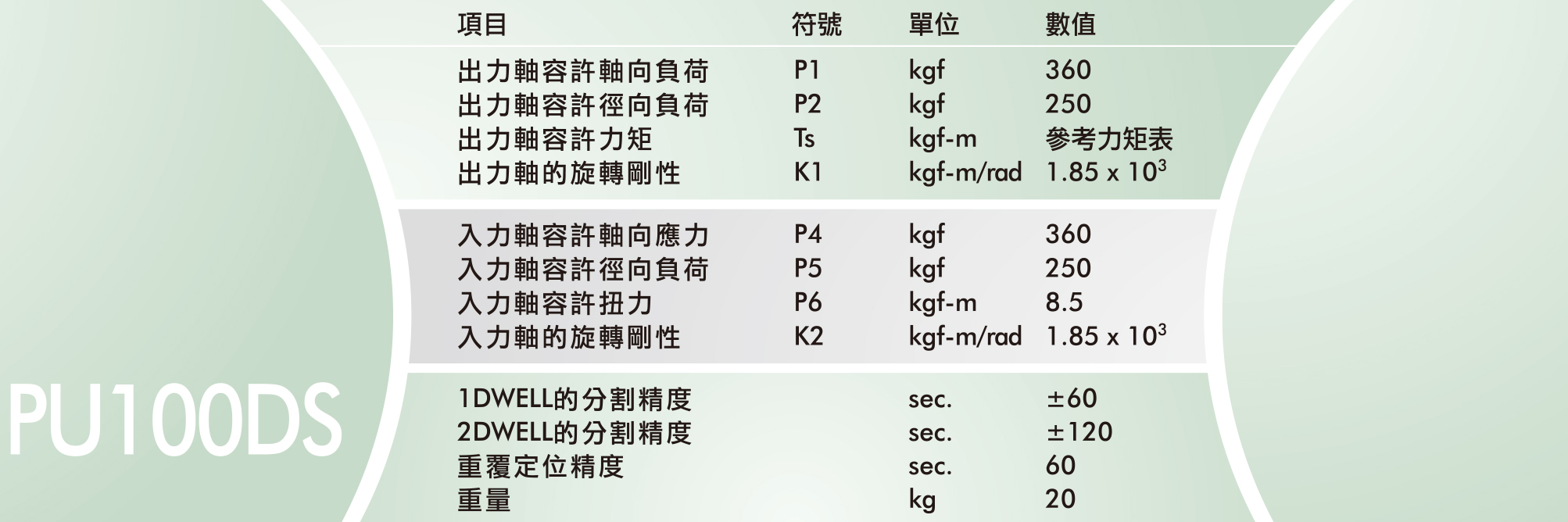

• NUMBERPU50DS,PU60DS,PU65DS,PU80DS,PU100DS,PU125DS,PU150DS,PU175DS,PU225DS,PU250DS,PU320DS,PU400DS
• DESCRIPTIONThe utility model comprises two plate cams fixed on the input shaft and a roller turret output shaft driven by the cam. The splitter has a parallel conjugate cam mechanism design, and the two plate cams connected to the input shaft are known to rotate. The transmission roller turret rotates to achieve the function of output shaft indexing, which is most suitable for the supply of belt conveyor with large pitch or intermittent division for long residence time. Another three-piece heavy-duty type is more suitable for some. Fast and long-pitch delivery, and the residence time is also two-piece long.
