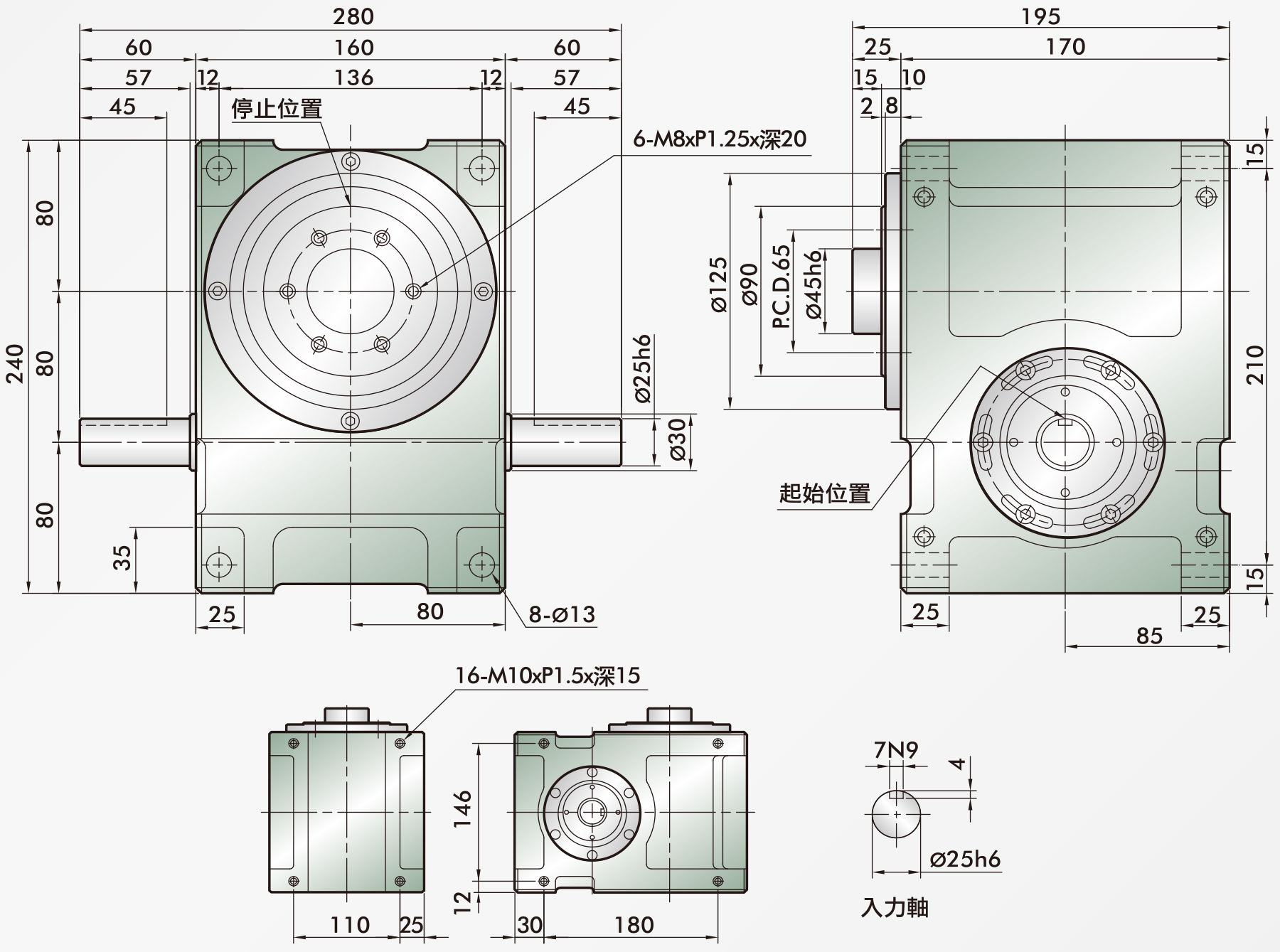

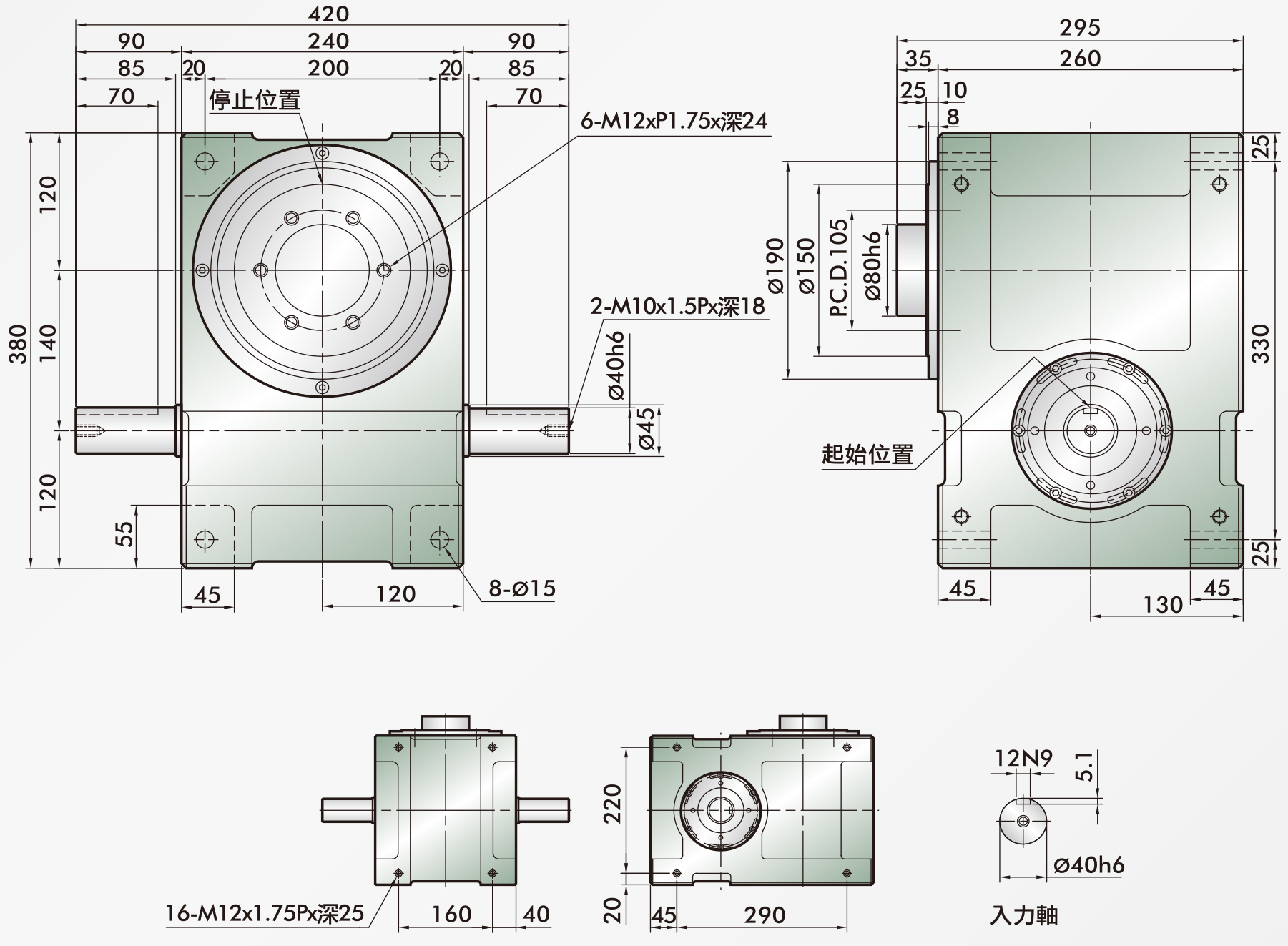

Flange Model

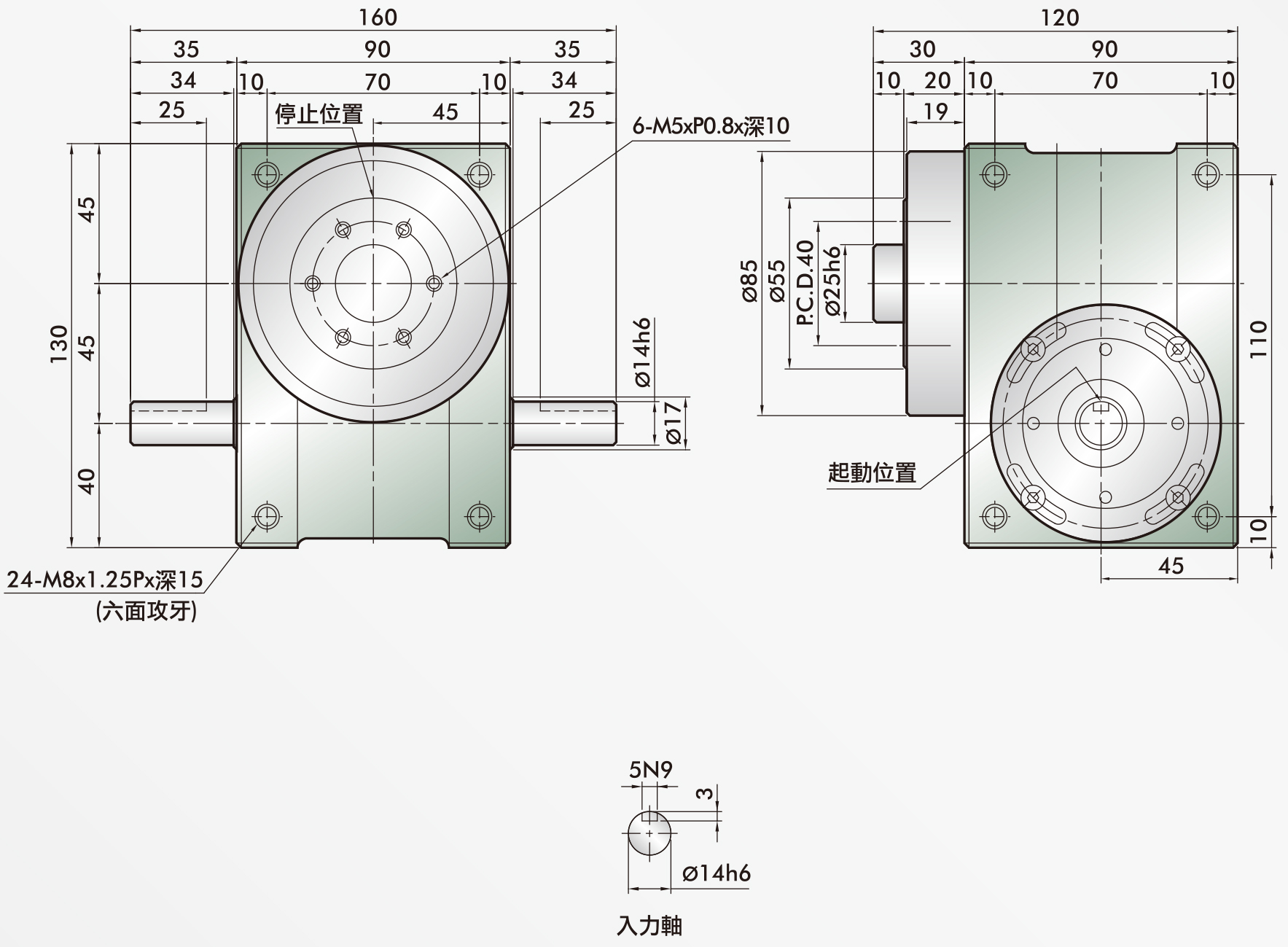

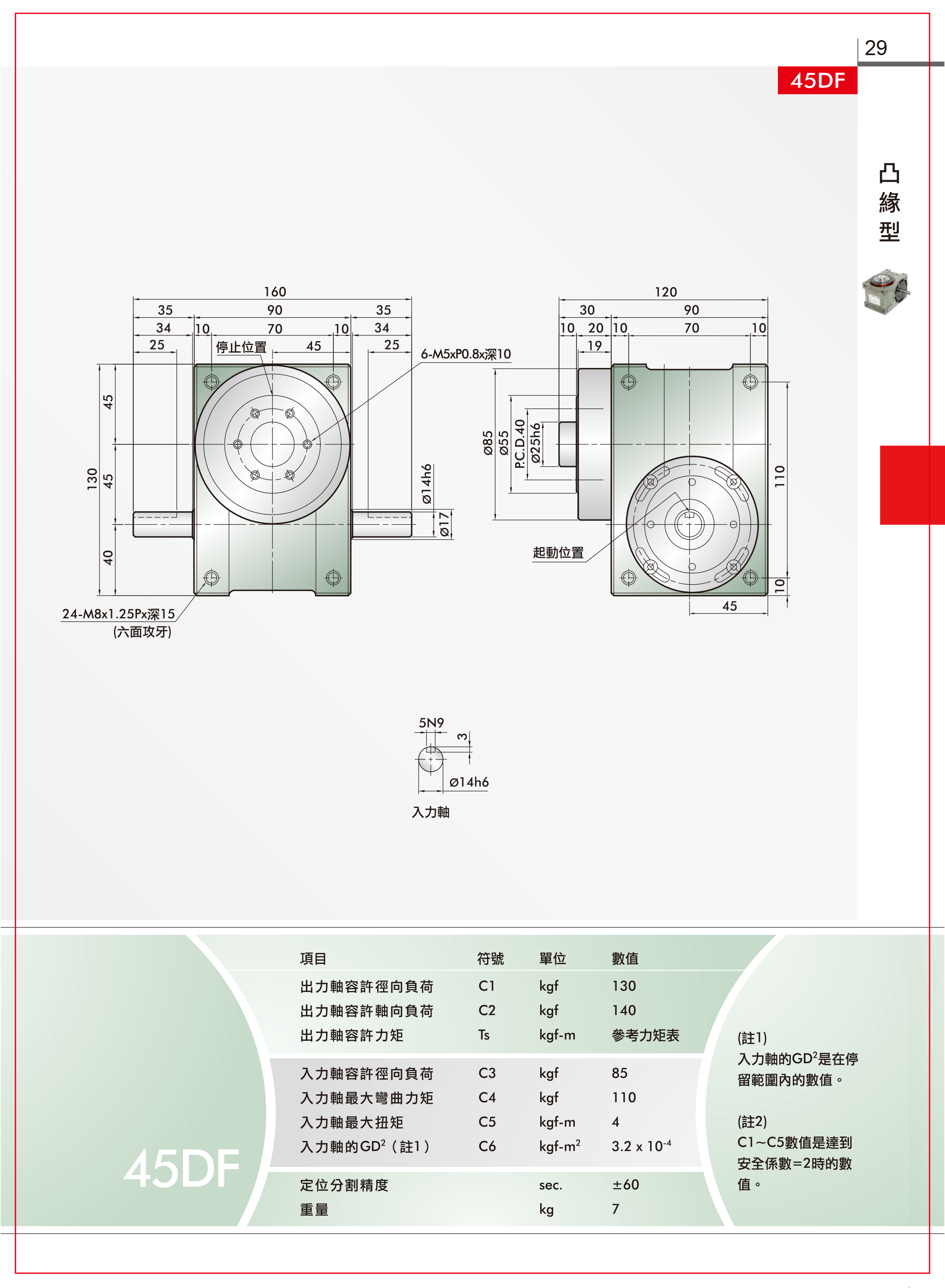

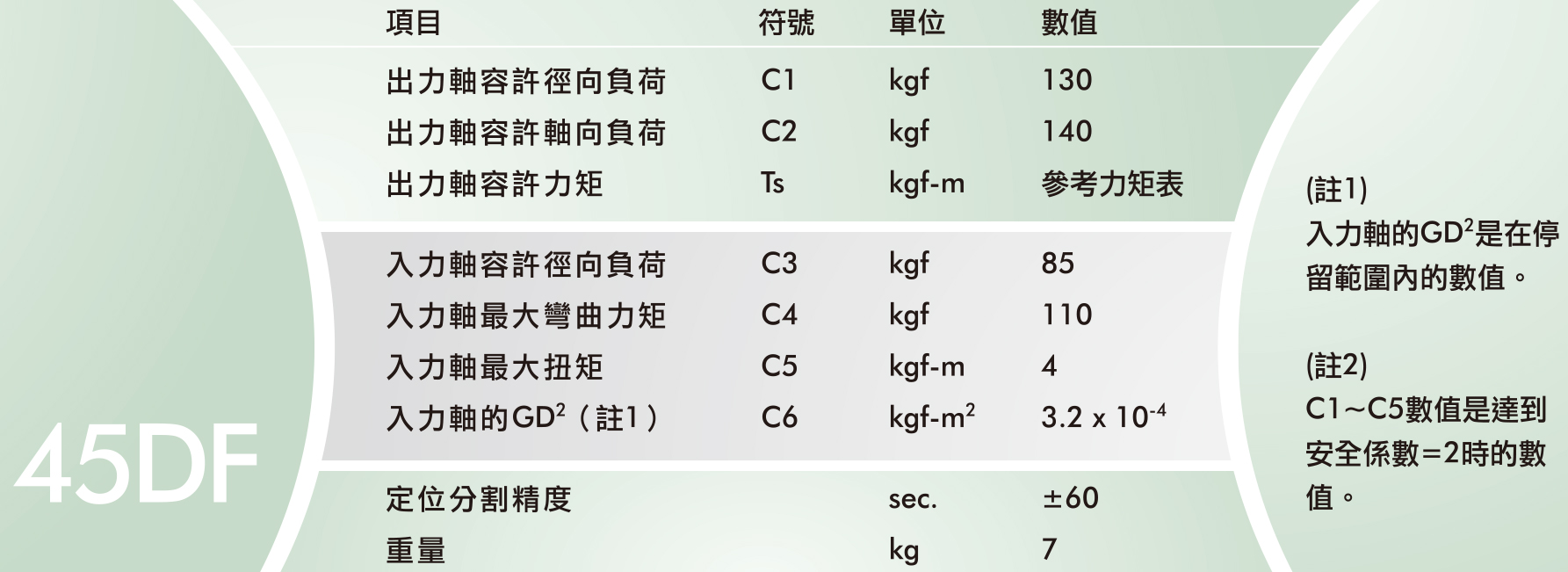

• PDF DOWNLOAD45DF

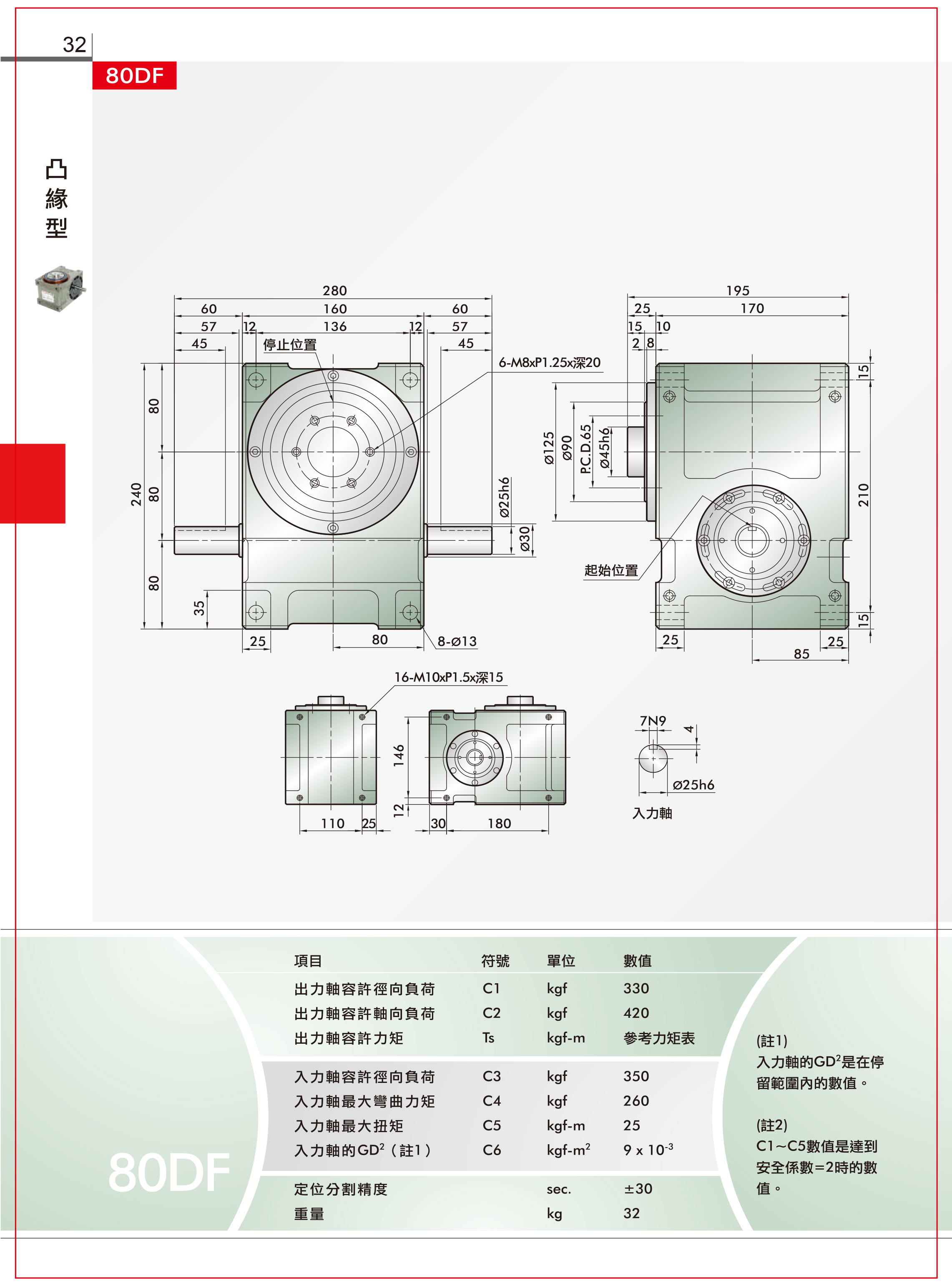

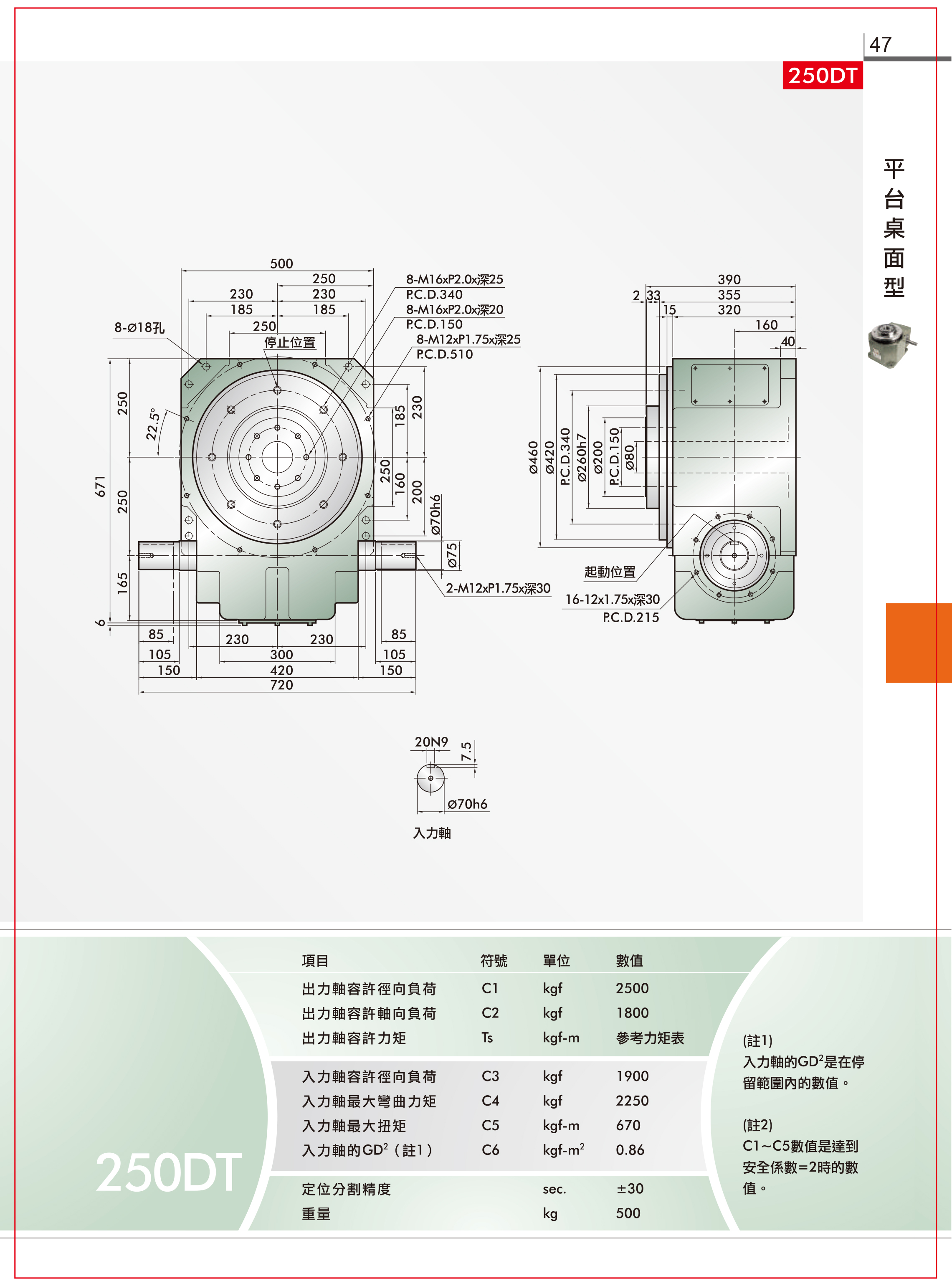

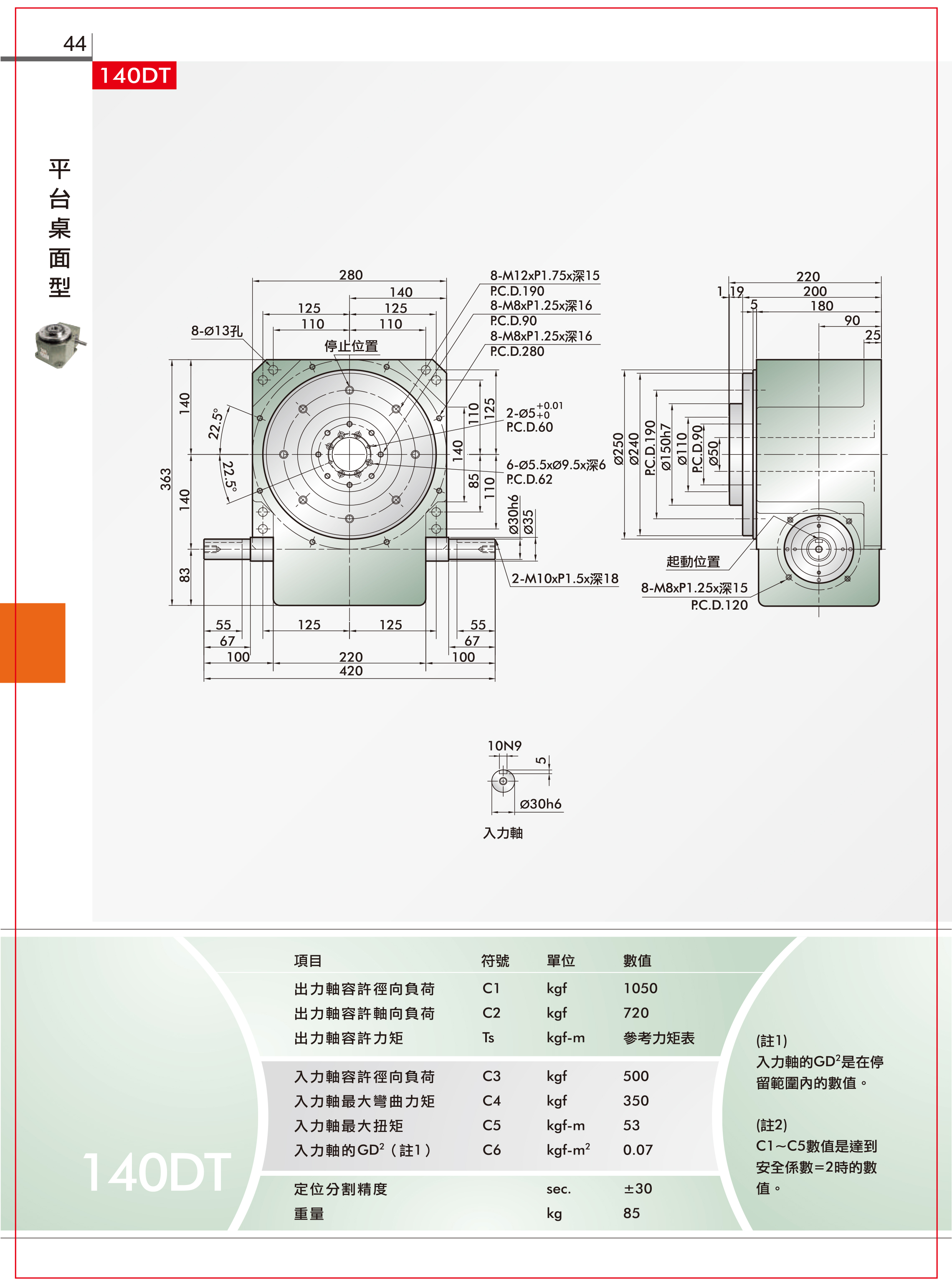

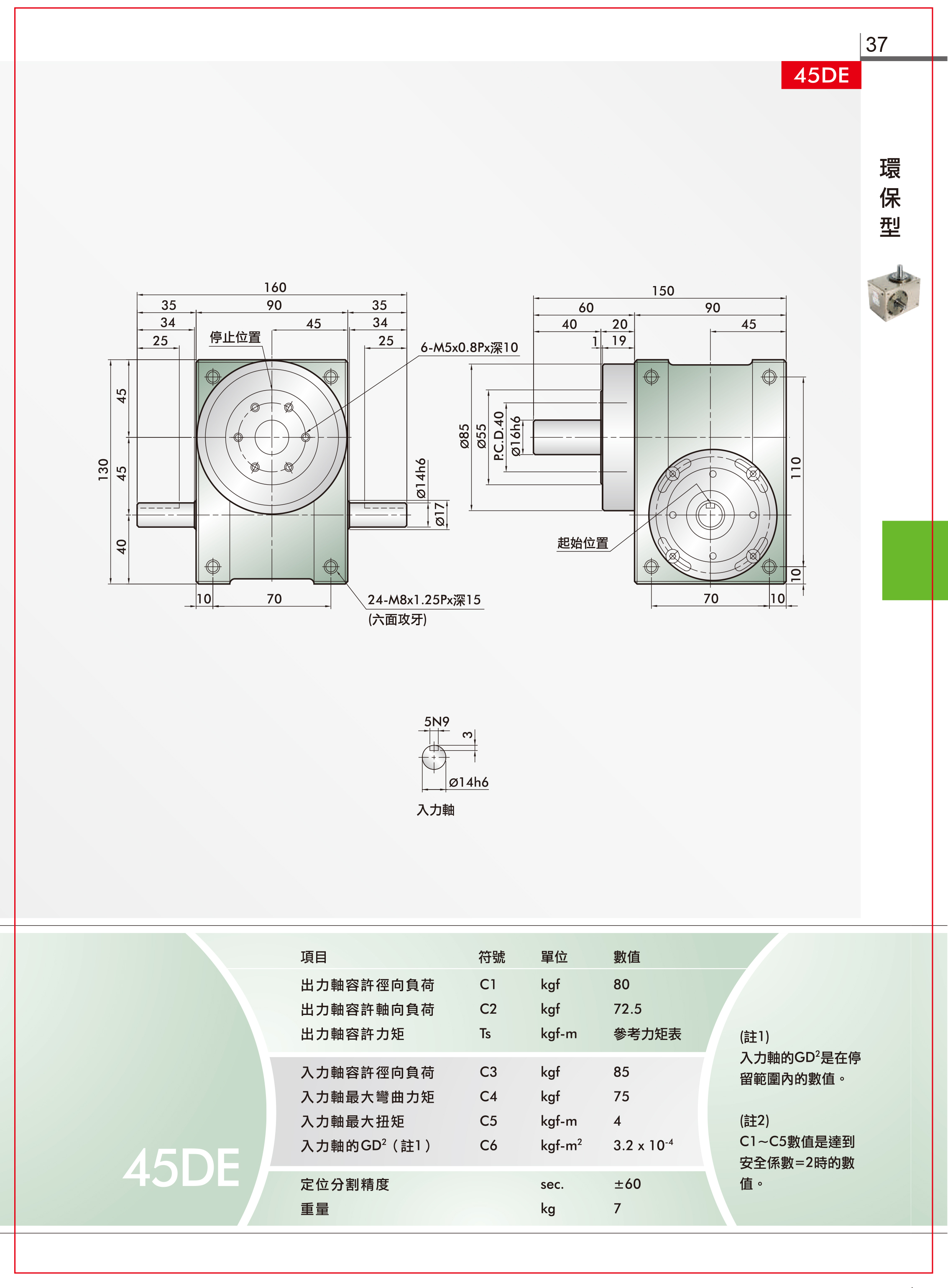

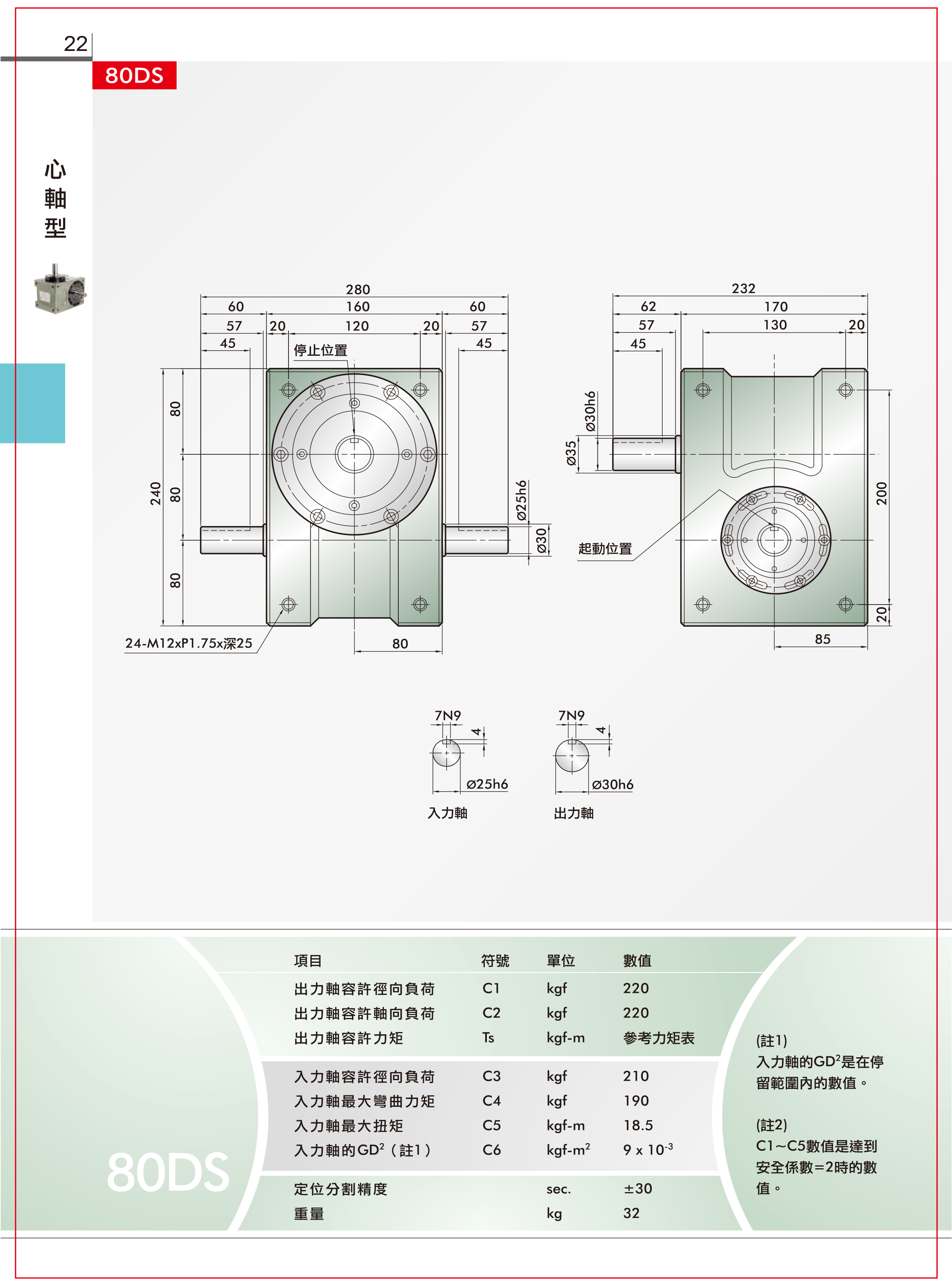

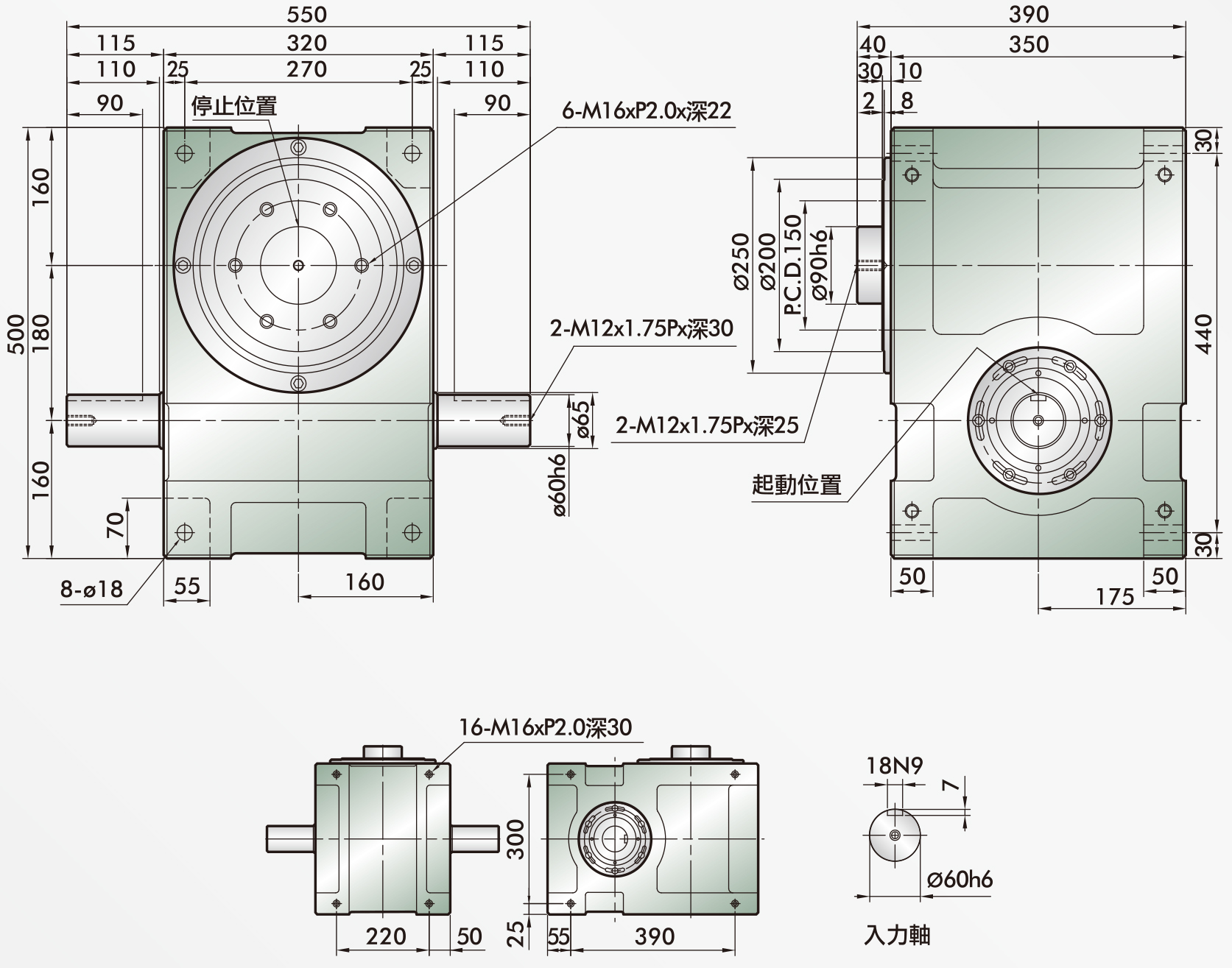

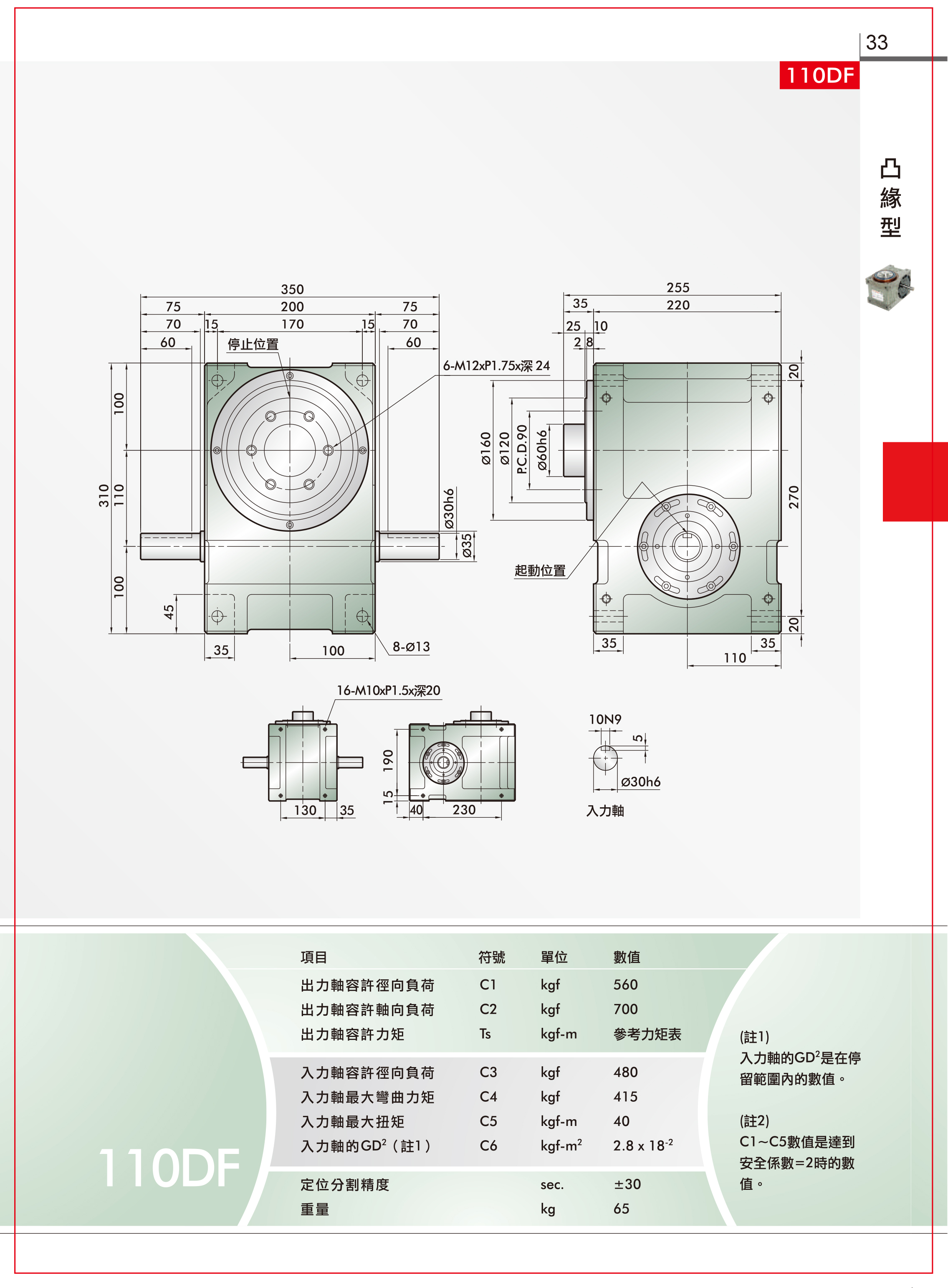

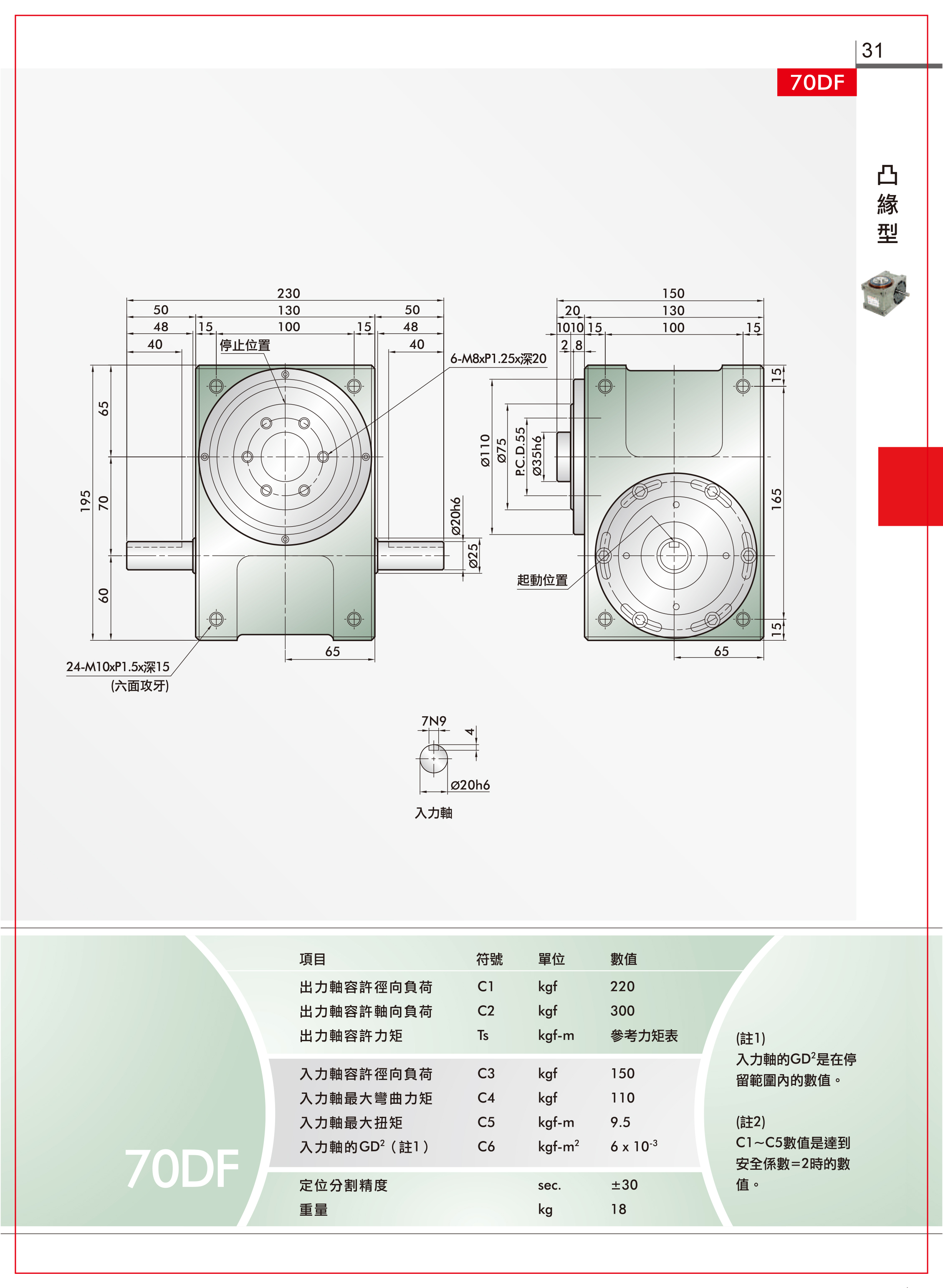

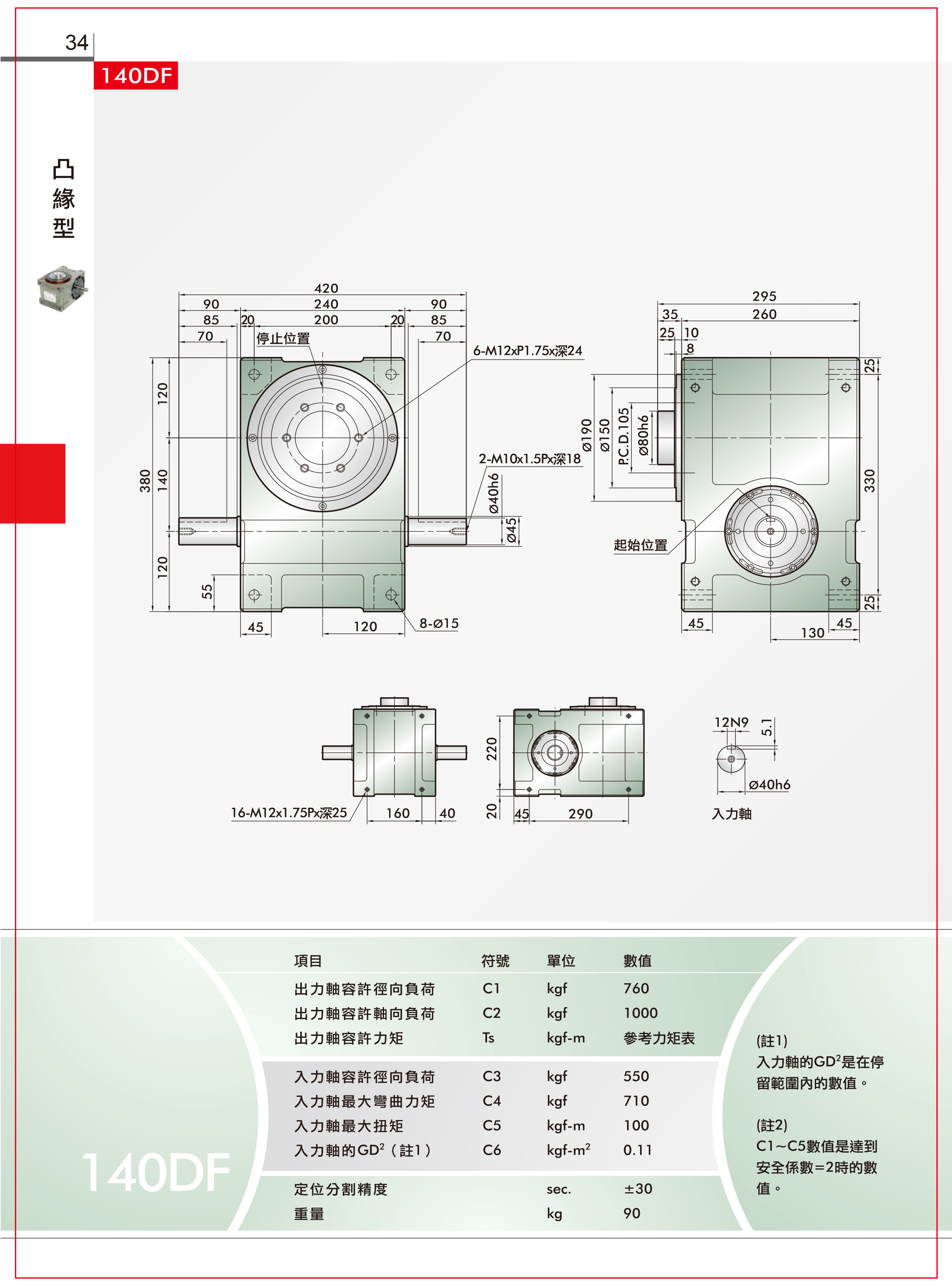

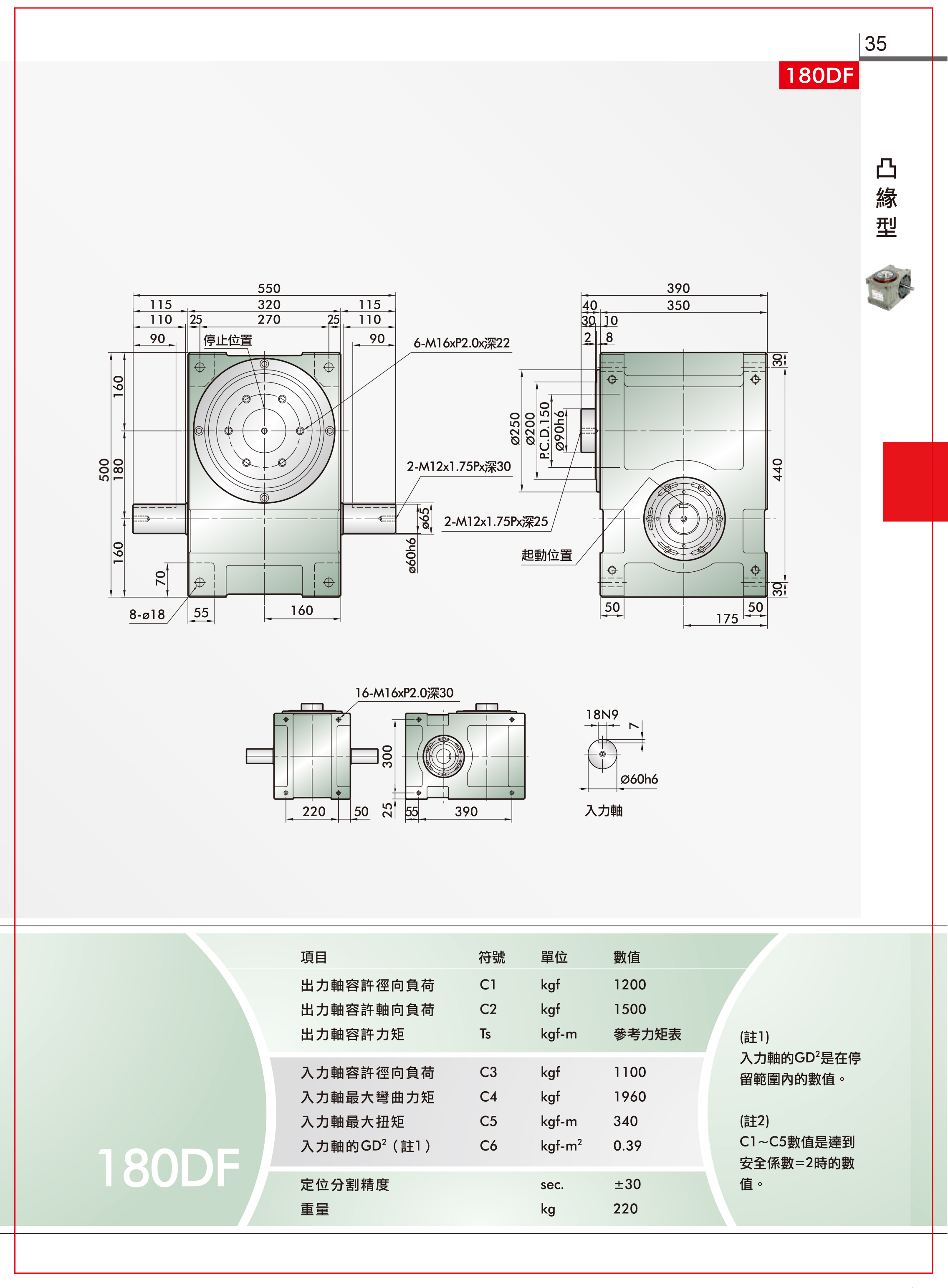

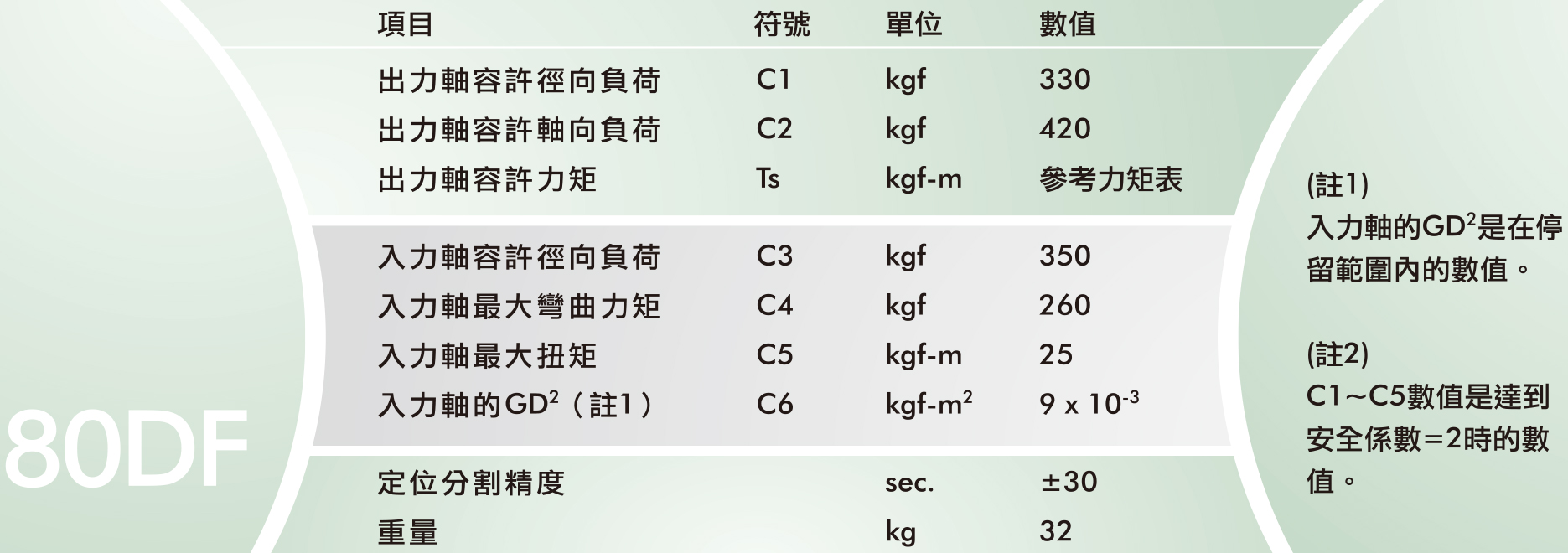

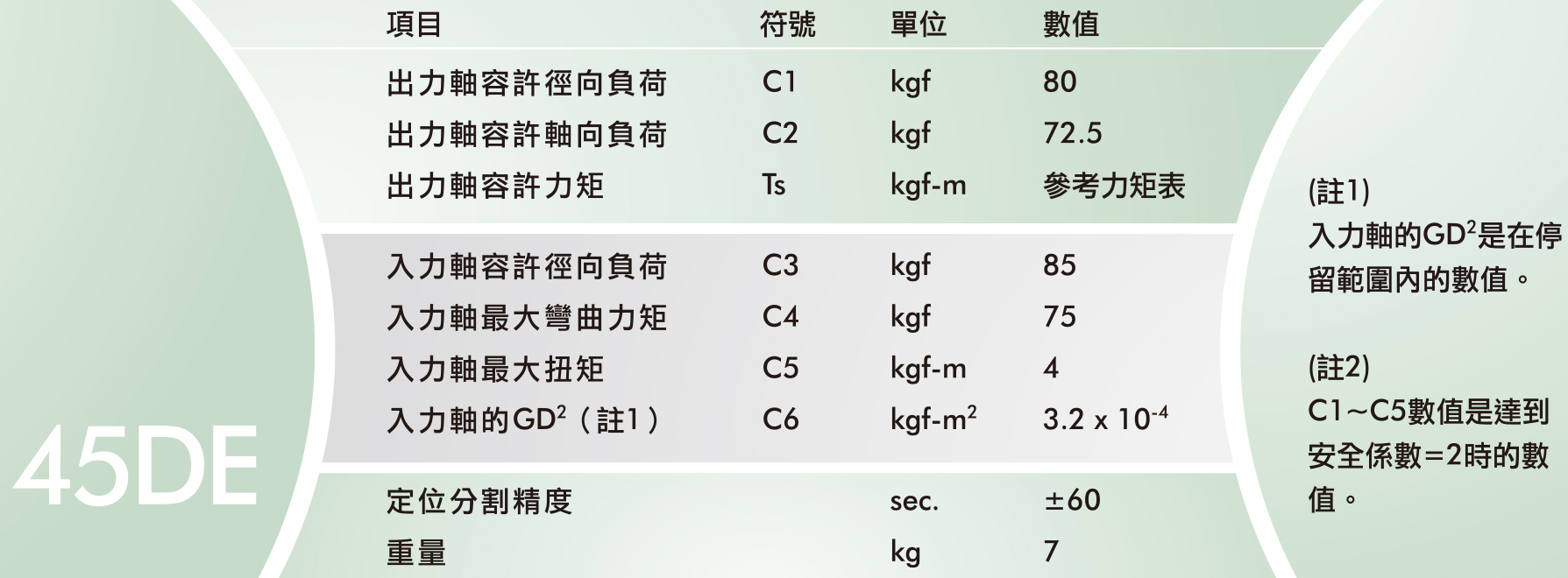

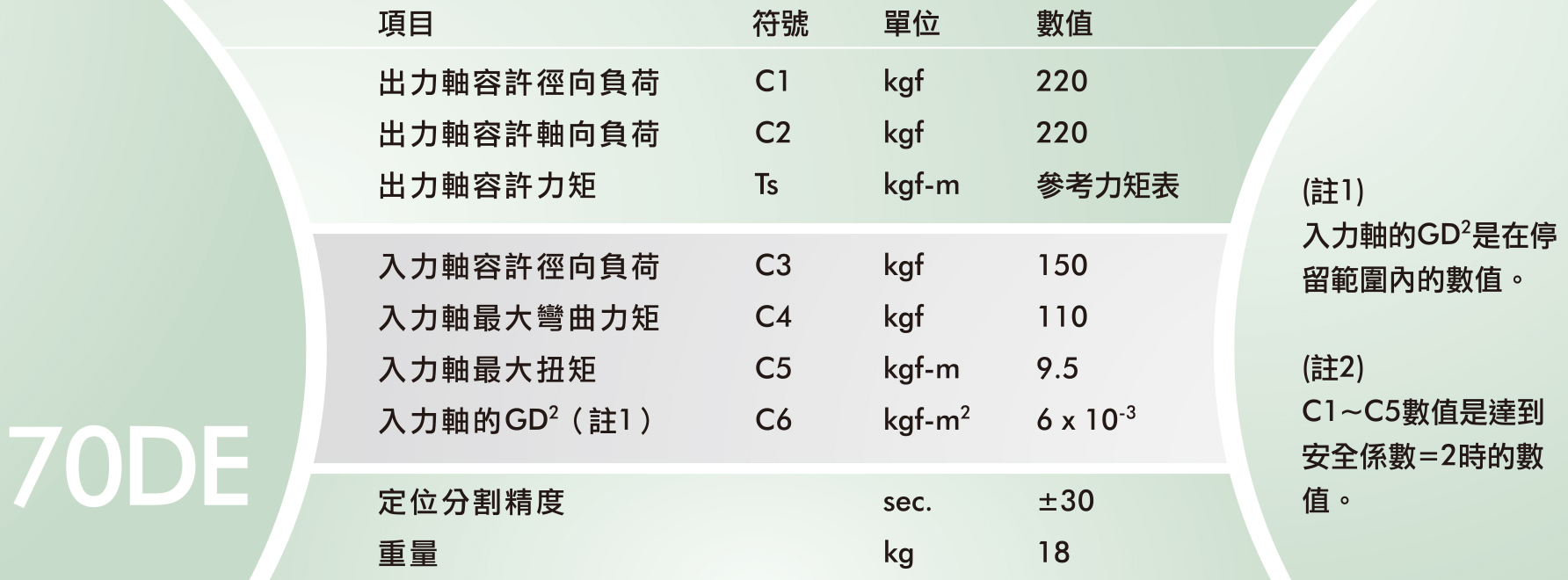

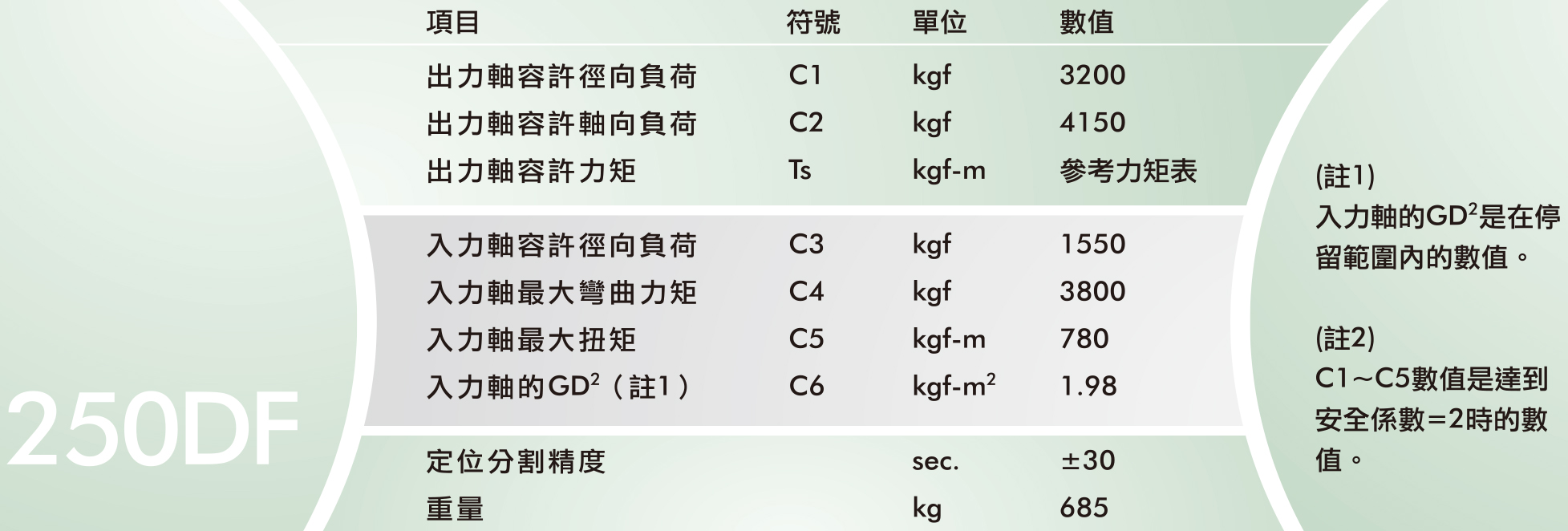

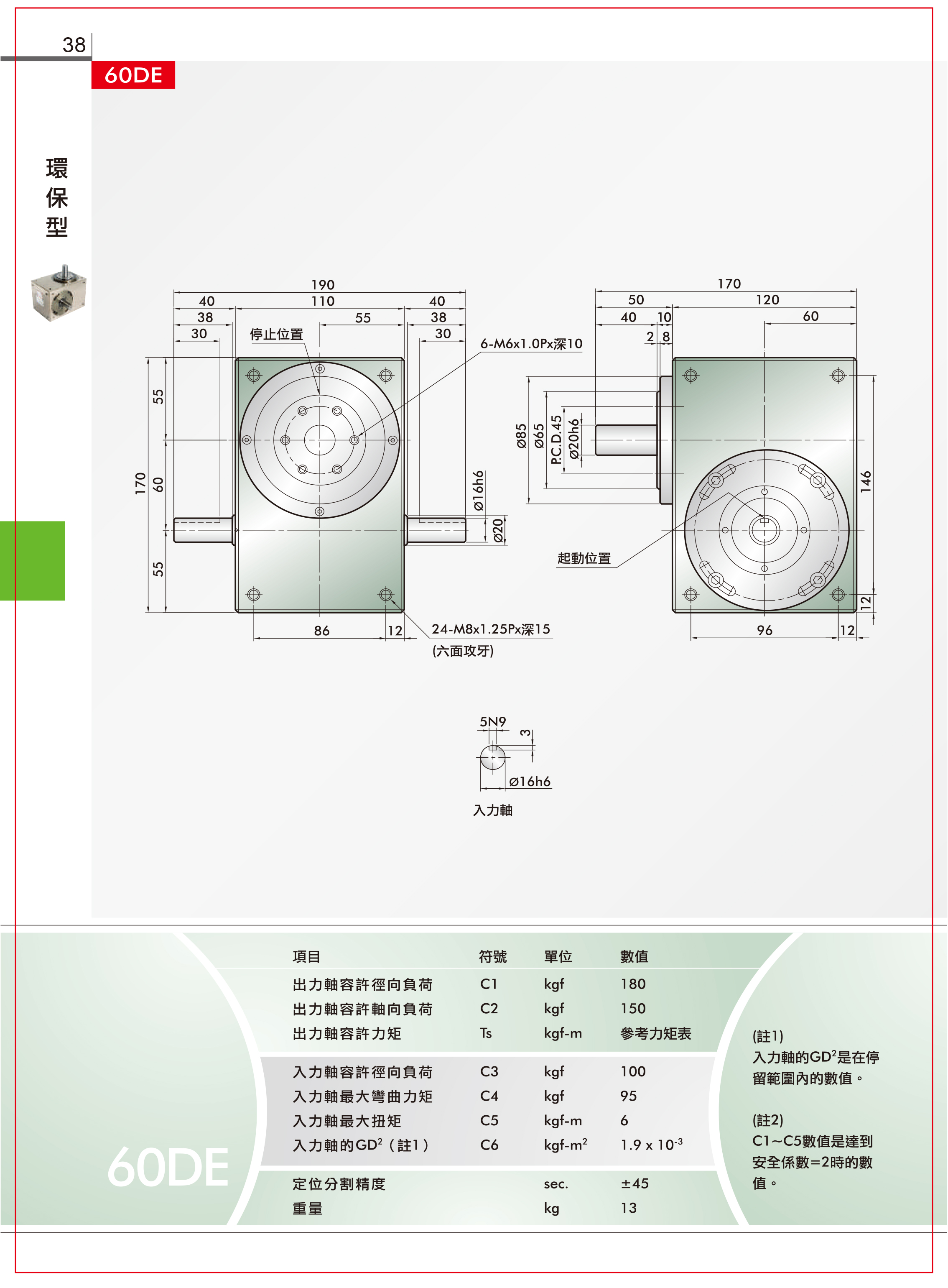

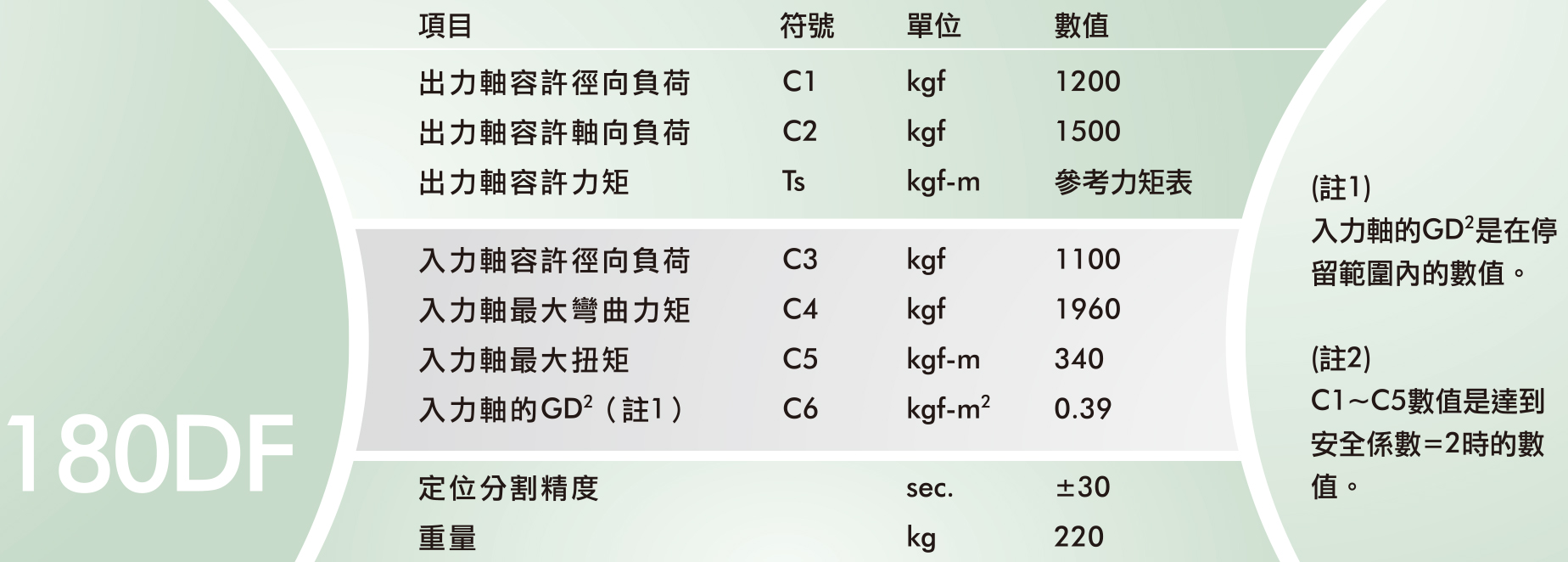

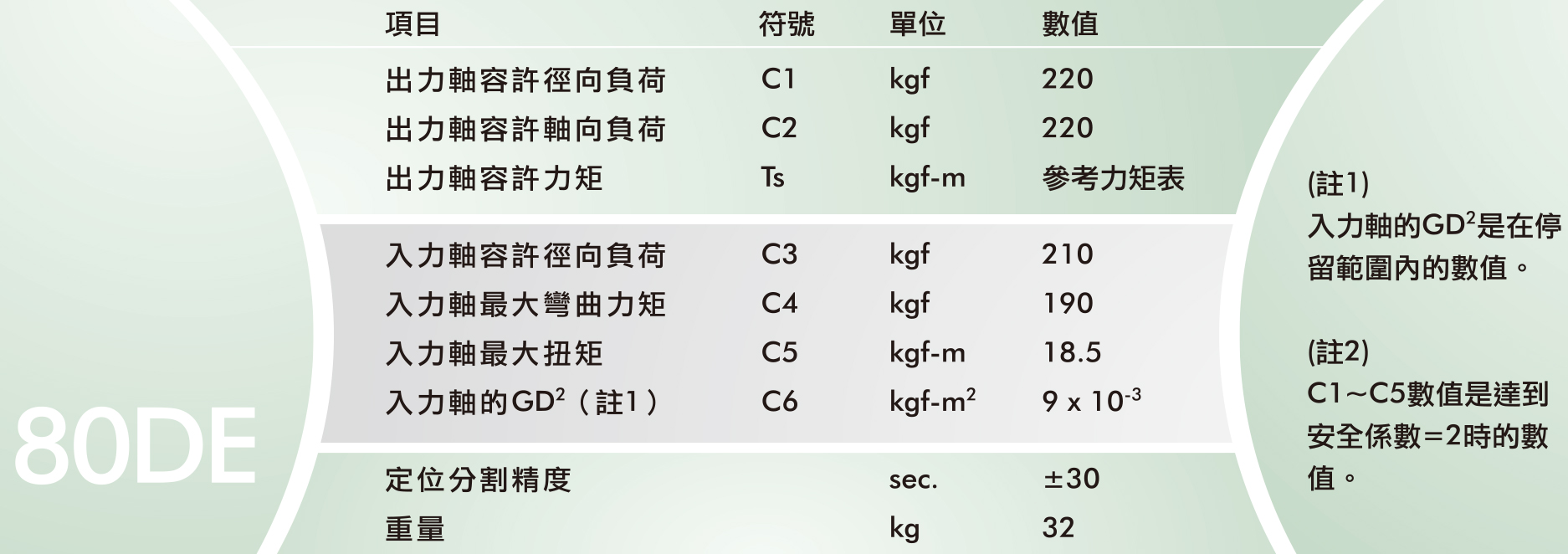

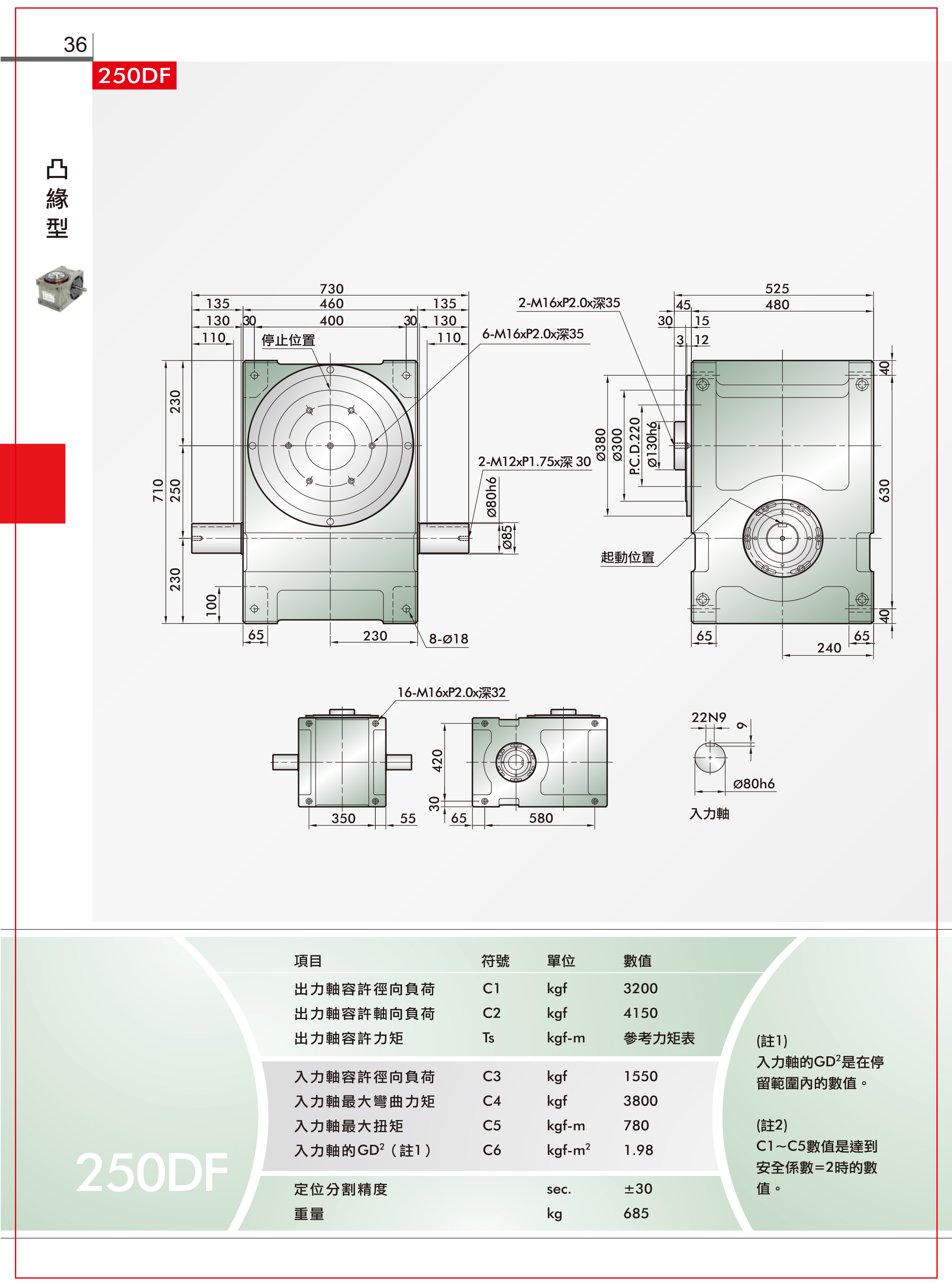

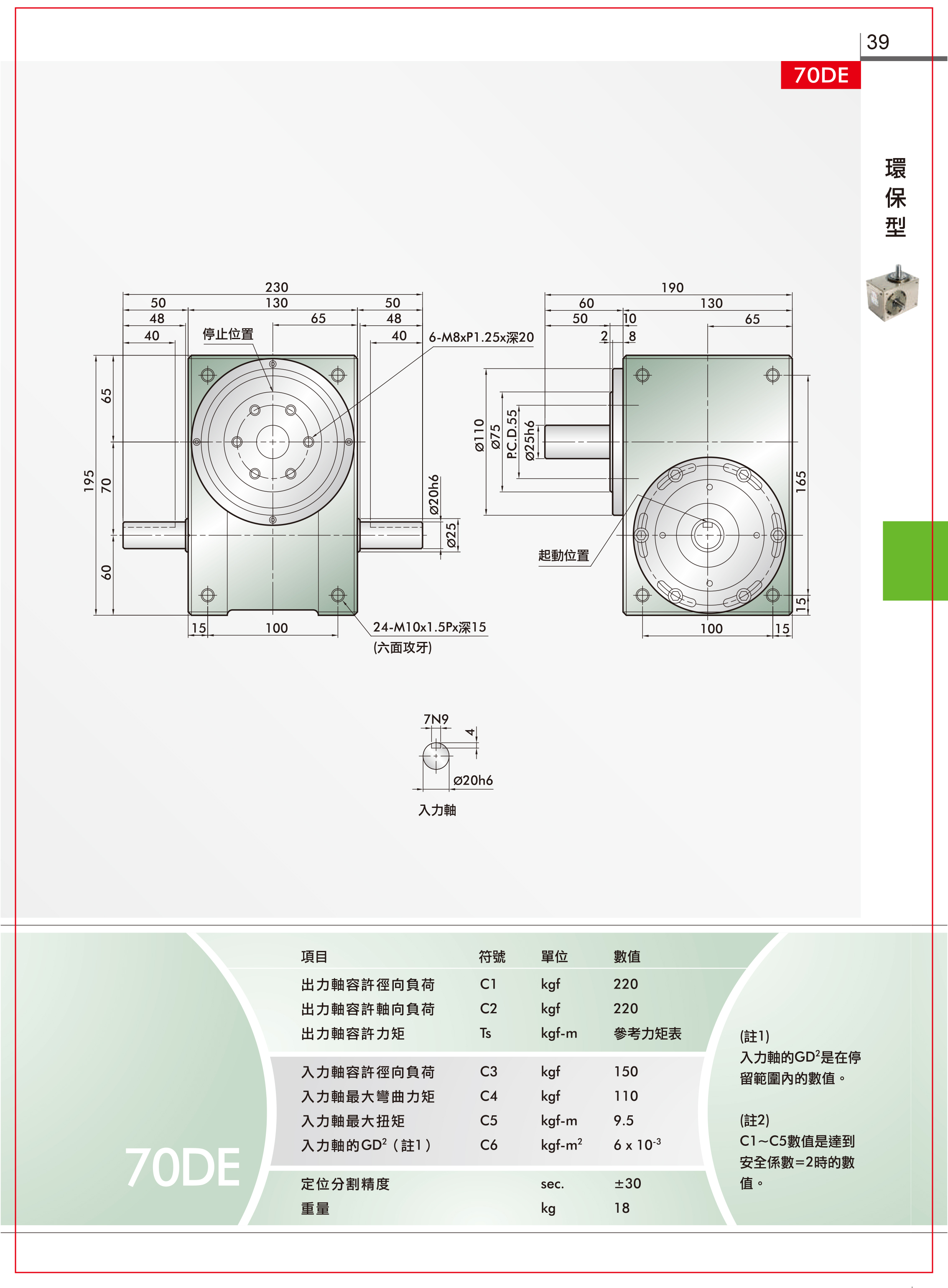

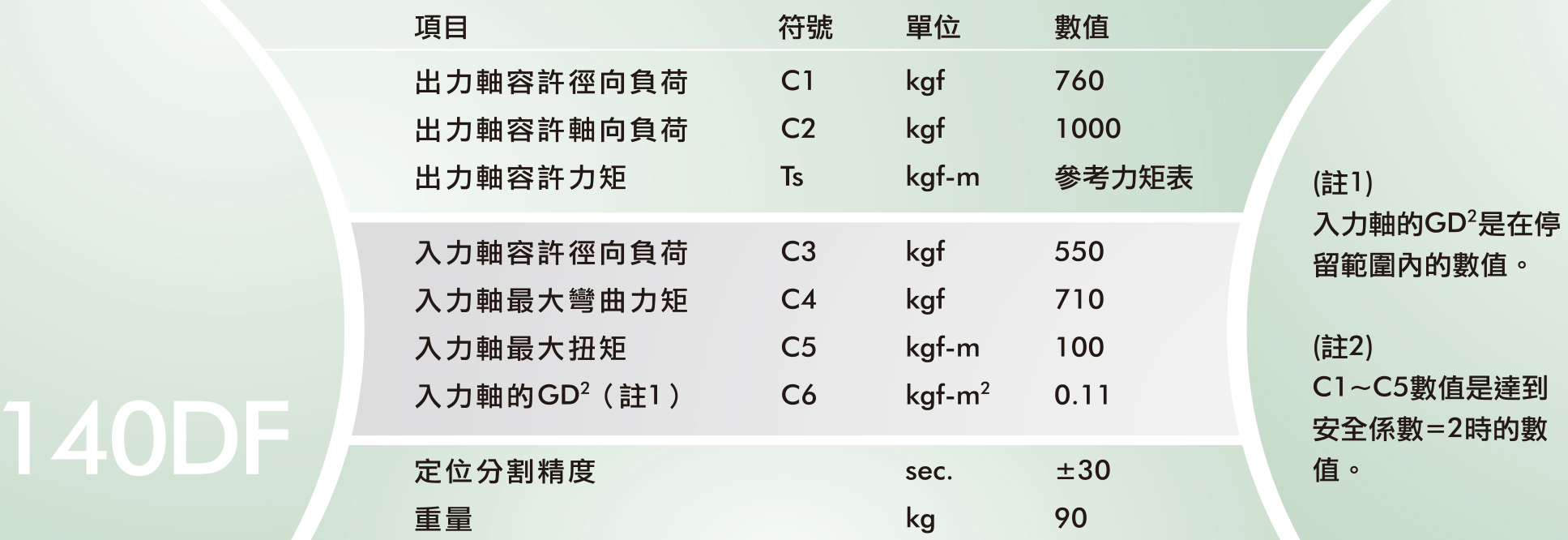

• NUMBER45DF,60DF,70DF,80DF,110DF,140DF,180DF,250DF,45DE,60DE,70DE,80DE

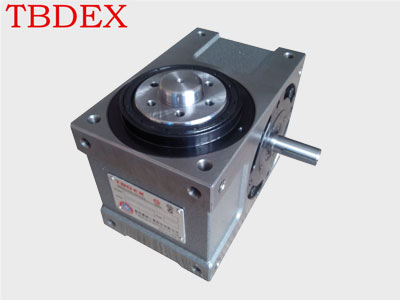

• DESCRIPTIONThis type of machine has heavy load and can withstand large vertical radial or axial pressure. It has flange center, disk screw hole, positioning, tip hole and fixed surface width, which can make flatness and stability, and it is more solid. Smooth, the most suitable for large-volume rotary disc drive applications, this series of models is widely used in a variety of disc processing machinery, and similar mechanisms to produce production machines, automated intermittent drive, drive disc.
